Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing

Minimum Order Quantity : 1 set Price : $5000 >=1 Set
Delivery Time : 35 work days Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 30 sets per month
Place of Origin: Guangdong Brand Name: Envsin
Certification: ISO CE Model Number: ECQ

Detail Information

Test Volume: 250L,500L,1000L And Other Customized Volume Temperature Range: -70~150℃
Heating And Cooling Rate: 1℃/min,5℃/min,10℃/min(Adjustable) Air Pressure: Normal Pressure~0.5kPa
Depressurization Time: <=45min(normal Pressure~1kPa) Pressure Precision: ±2kPa Target Value(normal Pressure~40kPa)Extended Fast Depressurization Function
Depressurization Range: 72.5kPa~18.8kPa Depressurization Time: 15 Seconds
Highlight:

multipurpose High Altitude Test Chamber

,

18.8kPa High Altitude Test Chamber

,

18.8kPa pressure test chamber

Product Description



Low Air Pressure Chambers With Temperature And Humidity Controls
This test chamber is suitable for simulating environmental tests of high temperature,low temperature,damp heat,low air pressure single climate factor or multiple climatic factors for the whole machine,components and materials.

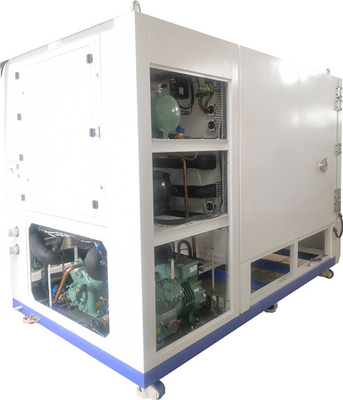

Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 0

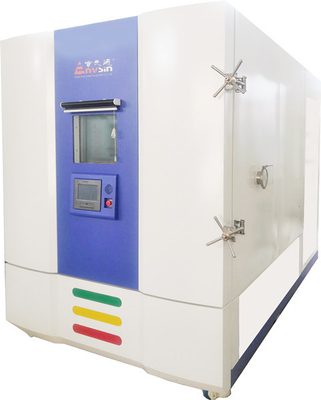

Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 1
Features
• High performance water ring vacuum pump controls low pressure.

• Fashionable design of modular construction.

• Built-in radiation shield ensures temperature homogeneity in low air pressure.







Product Paramenters
Temperature Chambers
ETQ7025
ETQ7050
ETQ7100
ETQ7200
Climate Chambers
ECQ7025
ECQ7050
ECQ7100
ECQ7200
Test Space Volume (L)
250
500
1000
2000
Temp. Test Parameters:
Temp. Range (℃)
-70~+150
Temp. Constancy (℃)
±0.1-±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity(℃)
±0.5-±2.0 (Atmospheric Pressure No Load)
Temp. Accuracy (℃)
±2.0 (Atmospheric Pressure No Load)
Heat Up Time (min) (+ 20℃ to ~150℃)

60

60

50

60
Cooling Down Time (min) (+ 20℃ to~60℃)

90

80

60

80
Pressure Range (Kpa)
Atmospheric Pressure ~1.0 Atmospheric Pressure ~0.5
Pressure Accuracy (Kpa)
±2 (Atmospheric Pressure ~40KPa); ±5%(40KPa~4KPa); ±0.1(4KPa~1KPa)
Pressure Release Time (min)

45(Atmospheric Pressure→1KPa)
Rapid Release of Pressure Function (optional)

Pressure Release Range: 75.2KPa → 18.8KPa; Pressure Release Time: 15sec
Climate Test Parameters for ECQ series:
Temp. Range (℃)
+10~+95
Temp.Constancy (℃)
±0.1~±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity (℃)
±0.1~±2.0 (Atmospheric Pressure No Load)
Humid. Range (%RH)
(10) 20-98 (Atmospheric Pressure No Load)
Humid. Constancy (%RH)
±1-±3 (Atmospheric Pressure No Load)
Test Space Dimension (mm)

600W×600D×700H

800W×700D×900H

1000W×1000D×1000H

1400W×1200D×1200H
External Dimension (mm)
1000W×1800D×1880H
1500W×2750D×1900H
1400W×3250D×2000H
1810W×3710D×2310H
Power
AC380V±10%, 50HZ, 3/N/PE
Cooling Methods
Water-Cooled
Options Accessories
Iindependent sensors for specimen protection (NE60519-2.1993)
• 1 Entry port Φ50mm
• Nitrogen gas auxiliary device
• Spare parts package
• Video monitor system
Quality Control

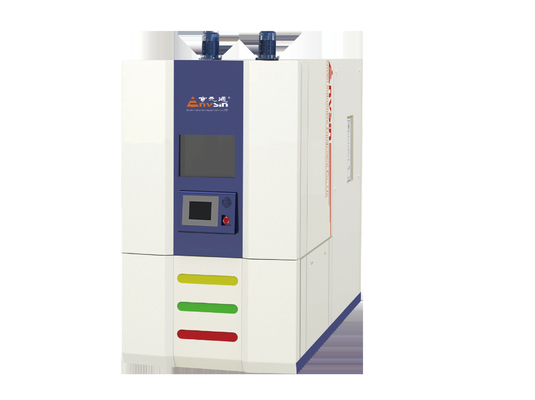

Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 2
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 3
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 4
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 5
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 6
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 7
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 8
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 9
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 10
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 11
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 12
Compliance with MIL-STD-810H and IEC 60068-2-13 Advanced Altitude Test Chamber for Electronics Durability Testing 13
Standard Version
1 Set testing electrode
• Electronic temperature and humidity sensors
