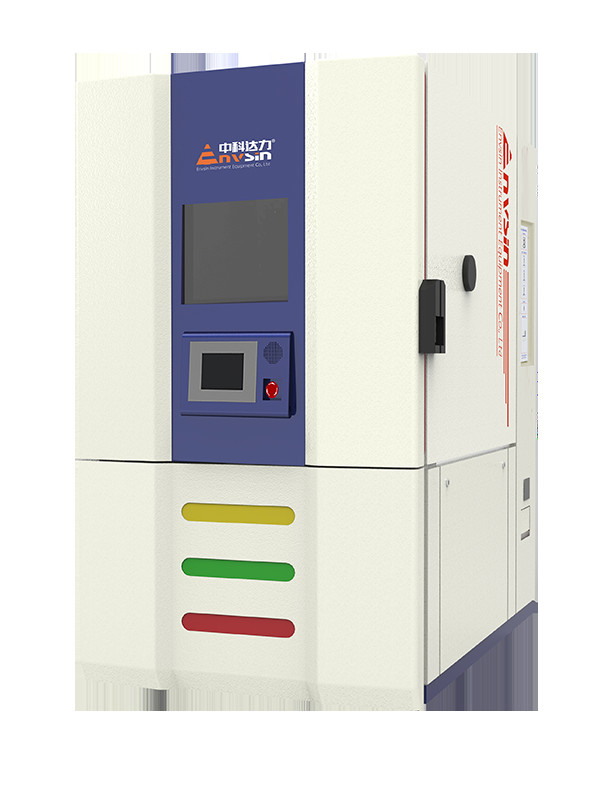

Compact Temperature and Humidity Chamber for Small-Scale Testing

Brand Name:	Envsin
Model Number:	ETP200-X
MOQ:	1
Price:	To Be Negotiated
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	25 per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE and ISO

Product Name:

Universal Testing Machine

Application:

Steel Tensile Test Machine

Test Standards:

GB, ISO, ASTM, BS, DIN, JIS Standards

Force Unit:

Kgf,gf ,N,kN,Ibf

Units:

Stress Unit: MPa,kPa,kgf/cm²,Ibf/in²;

Power:

AC230V±10%,50HZ,1/N/PE

Packaging Details:

Well packed in strong wooden case suitable for all types of long distance shipment

Supply Ability:

25 per month

Highlight:

multipurpose constant climate chamber

ASTM constant climate chamber

high temperature chamber

Product Description

Temperature and Tensile Combined Universal Testing Machine Mechanical Testing Equipment

Features:

• Multi-utility Clamps Removable and Replaceable.

• High accuracy: Gapless ball screw and synchronous transmission system design.

• Quick response frequency servo motor for control center unit, making transmission sensitive,
• Update service for operation system; professional data analysis ability.

• Tensile combined with environmental temperature parameters for universal testing purposes.

• Independent and removable environmental chamber of high accuracy; constant temperature control.
• Deformation test function on plastics, rubbers and mental specimens.

• PC with professional software management for parameters setting, test control, data analysis.

• Pre-installed complete database kernel providing professional data analysis.

• Tailored service for clients with special demands or requirements.

• Optional functions: pull, press, bend, rub, cut, peel, tear, sustained pull or press and anti-fatigue test.

• Metal stretch meter, displacement coder and large deformation extensometer interfaces reserved.

Specification:

High Temperature Model ETP High/low Temperature Model ETPS	ETP200-X(X is test force)	ETPS415-X(X is test force)
Temperature Range	RT ~200℃	-40~150℃
Temperature Accuracy	Constancy : <± 0.5 ℃ ； Homogeneity: <± 2.0℃ (No load, ambient temperature 25℃)
Max. Force	2/5/10/20/50/100/200/500/1000/2000kg; one of them provided
Operation System	PC with Windows system and total opening professional test management software
Measurement Accuracy	<±0.5%
Measurement Resolution	1/500000
Deformation Resolution	0.01mm
Deformation Reading Accuracy	<±0.5%
Force Range	0.5%~100%F.S
Test Speed Range	0.5~500mm/min (among 0.5~1000mm/min); stepless speed regulation
Max. Stroke	450mm, Clamps excluded (depended on the chamber volume )
Test Space	width 220mm; depth 350mm(depended on the chamber volume )
Units	Force unit: kgf,gf ,N,kN,Ibf ; Stress unit: MPa,kPa,kgf/cm²,Ibf/in²; Deformation unit: mm,cm,in; (user-defifined units available)
Stop Methods	Limit sensors up and down; emergency stop button; Programmable force and stretch set; Specimen damage sensors
Special Functions	Sustained pull, press, fatigue, bend, fold, cut and other tests as required by users in accordance with test methods or standards.
Transmission Structure	High accuracy ball screw
Driving-Force Device	Quick reponse frequency servo motor
Power	AC230V±10%,50HZ,1/N/PE
Chamber Internal Dimension(WDH)	220mm350mm450mm(with obversation window and light) Tensile Tester Dimension: 760mm450mm1540mm
Overall Dimension (WDH)	Chamber Dimension :450mm1050mm600mm / 450mm1450mm600mm (Extreme High Temp./High/Low Temp. Models); Overall Dimension: 760mm1050mm1540mm / 1130mm1450mm2650mm(min/max);
Test Standards	GB, ISO, ASTM, BS, DIN, JIS standards
Customized	Accepted all kinds of tailored designs

Options Accessories:

1 Popular Brand PC
1 Popular brand Color printer
Plastic Test Package: For plastic bottle body pressure and film test: roof press, pull and stretch, pierce, bottle cap unbolt
Rubber Test Package: rubber extensometer for high accurate test resolution; turn test

Metal Test Package: metal extensometer

Textile and Leather Test Package: different clamps provided in accordance with different products and test standards.
Test Package:viscosity test for adhesive tape; stable and high accuracy; able to do peel test of 180°, 90° and T-form.
Stretch Test:all kinds of force stretch test for varieties of materials; precise control of specimen extensibility and tensile failure force.

Standard Version:
