Reliable China Chambers Supplier for Sunlight Simulation Test with Temperature Humidity for Solar Panel Solor Energy

Name: Reliable China Chambers Supplier for Sunlight Simulation Test with Temperature Humidity for Solar Panel Solor Energy
Brand: Envsin
SKU: ESR
Price: 8000 USD
Availability: InStock
Rating: 4.6 (102 reviews)

Minimum Order Quantity :	1 set	Price :	$8000 >=1 Set
Delivery Time :	35 work days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	30 sets per month

Place of Origin:	Guangdong	Brand Name:	Envsin
Certification:	ISO CE	Model Number:	ESR

Detail Information
Test Volume:	1500L And Other Customized Volume	Temperature Range:	-70℃～100℃
Humidity Range:	10%～98% RH	Light Wavelength:	Full Band Spectrum, Simulating Sunlight From 280nm～3000nm
Irradiation Intensity:	55～1200W/m²	Cooling Time:	< =40min(no Load)
Heating Time:	< =50min(no Load)	Temperature Uniformity:	±0.1℃~ ±2.0℃
Temperature Fluctuation:	±1.0 ~ ±0.5℃
Highlight:	3000nm uv light chamber , 1500L uv light chamber , 3000nm xenon arc test chamber

Product Description

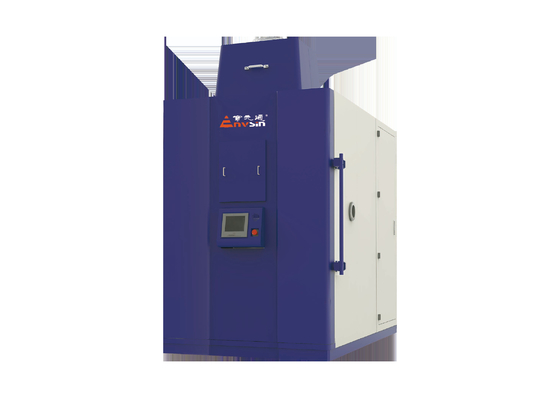

Computer Controlled Sunlight Simulation Test Chamber

Full-spectrum solar simulation test chamber can be used to evaluate equipment capacity exposure to the sun radiation
under solar radiation heat or photochemical in hot season.

Our Service

• Be able to provide a complete testing solution (customization)

• Patented and eye-catching industrial design

• Preferential supplier of Apple ,Cisco and Huawei in China

• Perfect systematic pre-sale and after-sale technical support

Specifications

The Temp Test	No radiation temp range: -40℃～＋120℃
	Radiation temp range: -20℃～+100℃
	Temp uniformity: ≤1.5℃
	Temp deviation: ±2.0℃
	Temp fluctuation: ±0.5℃
	Heating rate: ≥5℃/min
	Cooling Rate: ≥2℃/min
Temp And Climatic Test	Temp range:＋20℃～＋85℃
	Humidity range: 10%RH～98%RH
	Temp uniformity: ≤1.5℃
	Humidity uniformity: 3.0%RH
	Temp deviation: ±2.0℃
	Humidity deviation: ＋2/－3%RH
	Temp fluctuation: ±0.5℃
	Humidity fluctuation: ±2.0%RH
Solar Radiation Test	UV Exposure Area: ＞5600cm²
	The light wavelength: all band spectrum, simulated sunlight from 280 nm to 3000 nm
	Irradiation intensity :(0 ~ 1200) W/m² can be adjusted, and can be recorded continuously during the test

Performance curve diagram

Full Spectral Image Of The Luminaire


Standards:

• IEC60068-2-5 Test SA: Surface solar radiation simulation

• DIN75220 Changes of automobile components in a sunlight simulator

• MIL-STD 810G Environmental engineering related matters and laboratory testing
