| Brand Name: | Envsin |
| Model Number: | EFS |
| MOQ: | 1 |
| Price: | $5000 >=1 Set |
| Payment Terms: | T/T, Western Union, D/A, D/P |
| Supply Ability: | 20 sets per month |
Characteristic
| Model | EFS-PRO Series | ||
| Standards | GJB-150. 8-2009 | ||
| Spray Water Test: | Water-dripping Test: | ||
| Temp. Range (℃) | RT+10~+55 | Temp. Range (℃): | RT+10~+55 |
| Spray Intensity (cm/h) | 10~20 (Rotating shelf spray rate; Programmable) | Dripping Area (mm): | 760x760, Dripping Platform adjustable |
| Water Drop Diameter (mm) | 0. 5~4. 5 | Water Drop Diameter (mm): | 0. 5~4. 5, Dripping Hole Distance 25. 4 |
| Air Speed Range (m/s) | 5~18 (Rotating Shelf entry horizontal air speed) | Rain Rate (L/m2.h): | ≥280±300 |
| Spray Time (min) | Programmable (0-999) ;auto-controlled and cycled | Distance (m): | Dripping Distance 1 |
| Warm Up Range (C) | Water Temp. +10 (Max +55) | Water Supply: | Continuously Pump Auto-Supply,controlled |

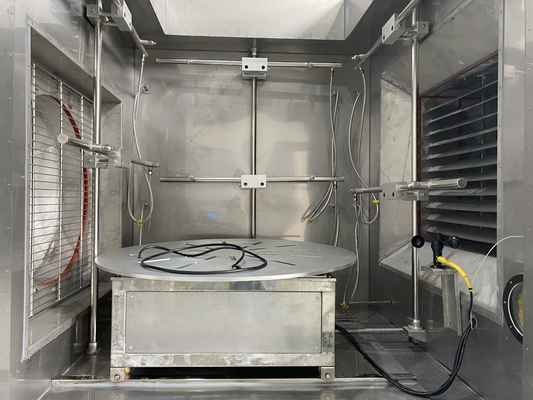

| Rotating Shelf Dimension (mm) | φ800, Rotating Shelf speed adjustable | Dripping Time (min): | 0~999,programmable |
| ,Specimens weight (kg) | ≥65 | Specimens Dimension (mm): | Max. Dimension:φ700x700 |
| Specimens Dimension (mm) | Max. Dimension: @700x700 | ||
| Water-Proof Test: | |||
| Water Spray Pressure (KPa): | ≥276 | Water Supply Method: | Water Pump Supply Continuously |
| Stainless Steel Nozzles: | Overhead, grid-shape, nozzle angle adjustable | Test Time(min): | 0~999, Adjustable |
| Nozzles Amt: | at least 1/0.56m² in the raining range Nozzles | Water Drop Diameter (mm): | 2~4.5 |
| Specimens Dimension(mm): | installed 450mm~500mm to the suface of samples | ||
| Max, Dimension φ700×700 | |||
| Test Space Dimension(mm): | 1500W×1500D×1600 H | ||
| Power: | AC380V ±10%, 50HZ, 3/N/PE | ||
| Model | EFS-LX Series | EFS-LC Series | EFS-LV Series |
| Test Space Dimension(mm) | 900W×900D×900H(1400) | 1300W×1300D×1300H(1800) | 1700W×1700D×1700H(2200) |
| Optional water-proof test abilities (composable) | IPX1,IPX2 (Dripping teset; vertical, slope15° ); IPX3,IPX4 (Swing pipes or Spray test);IPX5,IPX6 (Flush Test); IPX9 (Shower test). | ||
| Standards | GB4208-2008/IEC60529:2001 | ||
| Power | AC230V±10%, 50HZ, 1/N/PE | ||
| Options | Standard Version |
| ★ Entry ports | ★ Matched rotating shelf for specimens |
| ★ Power outlets for specimens | ★ Water filter |
| ★ Spare parts package | |
| ★ E-management and cyber-software | |
| ★ Video monitor system |
Application
It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity
and the electrical products etc; The test Data result which is very useful for scientific research, product development and
quality control sector to help them produce high quality anlysis report
