| Brand Name: | Envsin |
| Model Number: | ETQ7200 |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 25 per month |

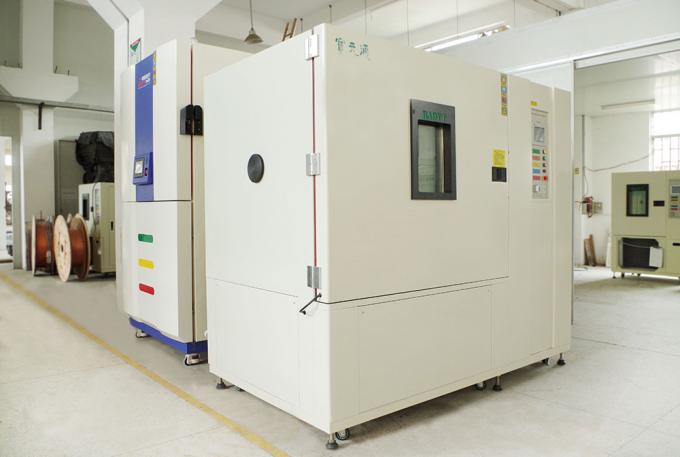

2000L High Altitude Test Chamber Air Pressure High Altitude Test Chamber
The high altitude test chamber is suitable for the machine equipment, spare parts, materials for high temperature, low temperature, damp and hot, depression or more single climate factor climate factor of environmental simulation test, used to evaluate the product or material parts under corresponding temperature, damp and hot, pressure environment on the reliability of the use, storage, transportation, and at the same time for electrical performance parameters of the test specimen electricity.
| Test volume | 2000L |
|
Internal size |
1400mm*1200mm*1200mm |
|
External size
|
1890mmx3800mmx2600mm (W*D*H)
|
|
Power supply |
AC380V plus or minus 10%, 50 hz + 1 three phase four wire + ground wire (3 / N/PE), grounding resistance less than 4 Ω |
|
Max. Power |
65KW |
|
Max. Currency |
110A |
|
Cooling Method |
Water cooled (refrigerating unit) |
| Temperature Chambers | ETQ7200 |
| Test Space Volume (L) | 2000 |
| Temp. Test Parameters: | |
| Temp. Range (℃) | -70~+150 |
| Temp. Constancy (℃) | ±0.1-±0.8 (Atmospheric Pressure No Load) |
| Temp. Homogeneity(℃) | ±0.5-±2.0 (Atmospheric Pressure No Load) |
| Temp. Accuracy (℃) | ±2.0 (Atmospheric Pressure No Load) |
|
Heat Up Time (min) (+ 20℃ to~150℃) |
60 |
|
Cooling Down Time (min) (+ 20℃ to~60℃) |
80 |
| Pressure Range (Kpa) | Atmospheric Pressure ~1.0 Atmospheric Pressure ~0.5 |
| Pressure Accuracy (Kpa) | ±2 (Atmospheric Pressure ~40KPa); ±5%(40KPa~4KPa); ±0.1(4KPa~1KPa) |
| Pressure Release Time (min) |
45(Atmospheric Pressure→1KPa) |
| Rapid Release of Pressure Function (optional) |
Pressure Release Range: 75.2KPa → 18.8KPa; Pressure Release Time: 15sec |
| Climate Test Parameters for ECQ series: | |
| Temp. Range (℃) | +10~+95 |
| Temp.Constancy (℃) | ±0.1~±0.8 (Atmospheric Pressure No Load) |
| Temp. Homogeneity (℃) | ±0.1~±2.0 (Atmospheric Pressure No Load) |
| Humid. Range (%RH) | (10) 20-98 (Atmospheric Pressure No Load) |
| Humid. Constancy (%RH) | ±1-±3 (Atmospheric Pressure No Load) |
| Test Space Dimension (mm) |
1400W*1200D*1200H |
| External Dimension (mm) | 1810W*3710D*2310H |
| Power | AC380V±10%, 50HZ, 3/N/PE |
| Cooling Methods | Water-Cooled |
|
Options Accessories Iidependent sensors for specimen protection (NE60519-2.1993) Nitrogen gas auxiliary device Spare parts package E-management and cyber-software ideo monitor system APP for mobility management Rapid release of pressure device Rapid recovered pressure device |
Standard Version 1 Set testing electrode Electronic temperature and humidity sensors |
• GB/T 2423.1 Low temperature test method
• GB/T 2423.2 high temperature test method
• GB/T2423.21 Low pressure test method
• GB/T2423.34 humid heat cycle test method 9, GJB 150.6 temperature - height test
• IEC60068-2 temperature/low pressure test method
• GJB 150.2 low pressure (height) test
• GJB 150.3 high temperature test
• GJB 150.4 low temperature test
• GJB 150.6 temperature - height test
• GJB 150.9 damp heat test
Envsin has been building test chambers in China since 1996.Our Mission Committed to be a world-class manufacturer of environmental simulation equipments.Meet the needs of customers while improving production efficiency and product quality.Meet the needs of all employees to enhance their capability and achieve self-fulfillment.Be a responsible company, work hand in hand with our clients for a
long-lasting partnership.
