Reliable Temperature Humidity Chamber for Aerospace and Defense Testing 600L Cuatomizable Design

Name: Reliable Temperature Humidity Chamber for Aerospace and Defense Testing 600L Cuatomizable Design
Brand: Envsin Instrument Equipment Co., Ltd.
SKU: EC4060
Price: Negotiable USD
Availability: InStock

Brand Name:	Envsin
Model Number:	EC4060
MOQ:	1
Price:	To Be Negotiated
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	25 per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE and ISO

Product Name:

Temperature And Humidity Test Chamber

Key Word:

Environmental Test Chamber

Test Space Volume:

600L

Temp. Range:

-40/+180℃

Temp. Constancy:

±0.1-±0.5℃

Temp. Homogeneity:

±0.5-±2.0℃

Heating Rate:

3.0℃/min

Cooling Rate:

2.0℃/min

Packaging Details:

Wooden packing

Supply Ability:

25 per month

Highlight:

AC380V Environmental Test Chamber

Flammable Environmental Test Chamber

600L Environmental Test Chamber

Product Description

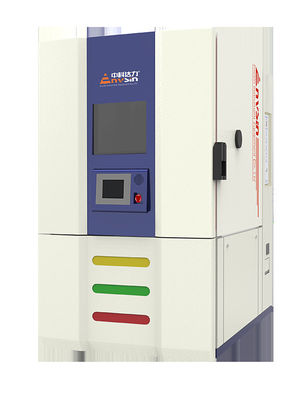

EC4060 Temperature And Humidity Test Chamber 600L environmental test chamber

Test or storage of flammable, explosive, volatile, corrosive samples;
Test or storage of living things with vital signs;
Test or storage of particle radiation and strong electromagnetic interference；
Test or storage of samples that of easy thermal deformation.

Specifications:

Properties

Model: EC4060

Test Space Volume(L)

600L

Temperature Test Parameters:

Test Space Dimension

800W*800D*950Hmm

External size

1090W*1960D*1995Hmm

Reliable Temperature Humidity Chamber for Aerospace and Defense Testing 600L Cuatomizable Design 0

Temp. Range

-40/+180℃

Temp. Constancy

0.1-±0.5℃

Temp. Homogeneity

±0.5-±2.0℃

Heating Rate

3.0℃/min

The temperature deviation

≤2℃

Humidity control temperature range

10℃~90℃

Humid. Range

10-98%RH

Humid. Constancy

±1.0-±3.0%RH

Temp. Constancy

±5%RH(≤75%RH)；﹢2/﹣3%RH(≥75%RH)

Temp. Homogeneity

±3.0%RH

Power

AC380V±10%, 50HZ, 3/N/PE

Cooling Methods

Air-Cooled

Installation Site

Installation ground flat, good ventilation; no flammable article, corrosive gas or dust;
No strong EMR source nearby;
Close to drainage system ( within 2 meters for condensate water) The chamber should be installed on a flat floor, the load of the surface is more than 800kg/m2；
Prepare proper power supply and water supply;
Prepare field for Liquid Nitrogen Auxiliary Refrigerating Device;
Ambient Temp: 5℃~25℃suggested, 25℃~35℃ function well;(for air-cooled model);5℃～40℃ function well (for water-cooled model)
Ambient Humid:≤85%RH；
Ambient Pressure:86KPa～106KPa;
Installation space assurances, as following

Reliable Temperature Humidity Chamber for Aerospace and Defense Testing 600L Cuatomizable Design 1

A:100cm

B:80cm

C:150cm

D:80cm

E:60cm

Standard:

GB/T 2423.1 (Low Temp. Test)	GB/T 2423.2 (High Temp. Test)
GB/T2423.34 (Climate Cycling Test)	IEC60068-2 (Climate Test)
GJB 150.3 (High Temp. Test)	GJB 150.4 (Low Temp. Test)
GJB 150.9 (Climate Test)	MIL-STD-202G-103B (Humid Test)

Temperature and Humidity Control Chart:

Structure:

1.Chamber door	2. Observation window
3. Control Pad	4. Working Lights
5. Cable port	6. Extensional control pad
7. Wheels	8. Power distribution board

Structure

Test room is on the top, under which is cooling system; at the back is power distribution control; the front is the main control panel, and the extended one is on the right-back side. Door opens from right to left. At the back of test space are air circulation channel and air conditioning system.

About Envsin:

Envsin Instrument Equipment Co., Ltd is one leading manufacturer and supplier in China for environmental chamber and climatic chamber.

Envsin has won more than 67 patents,24 software copyright,ISO9001:2008 and ISO 14001:2004 are certified.

Envsin equipment are widely used with the Aviation,Aerospace ,Boat and Ship,Military,Rail Transit,Medical,Communication,

New Energy,Plateau,Civil Electrical,Military,Electronics,Package,Automotive,Military Vehicles,Instrument,Fire Equipment.

Envsin products include: Temperature Humidity Chamber,Thermal Shock Chamber,Industrial Oven,Aging Test Chamber,Corrosion

Test Chamber,Mechanical Tester.

During past years, we are honored to be the preferential vendor to many famous entities such as Foxconn, Apple,CISCO,SAMSUNG.With 18 service centers in 16 countries,envsin is qualified to provide you competitive test solutions and services.
