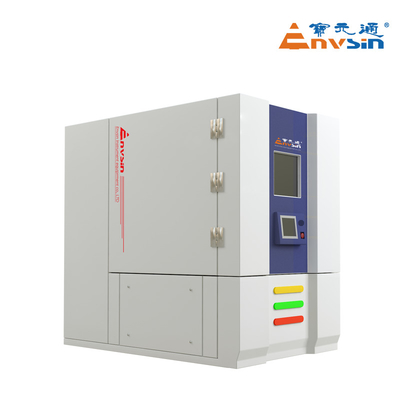

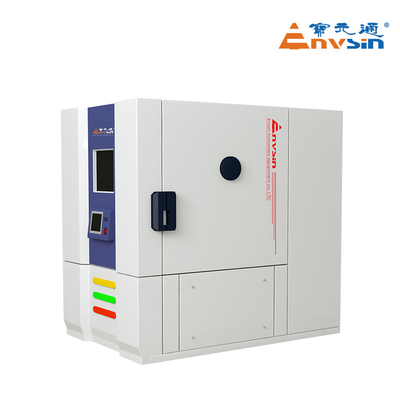

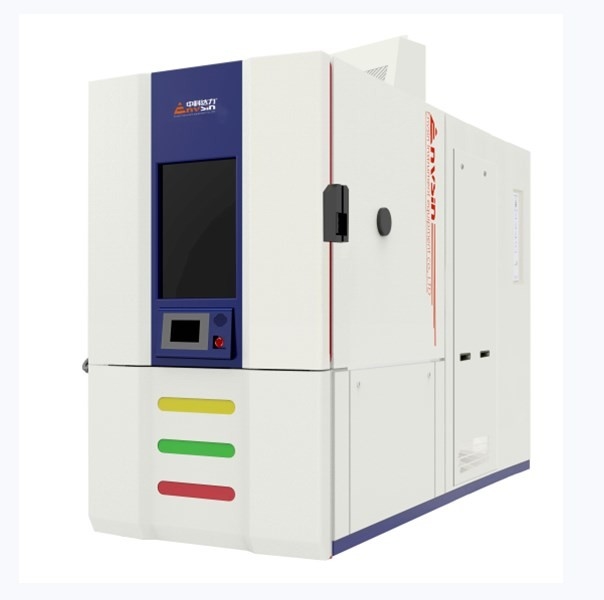

Multifunctional 200L Climate Control Chamber With Observation Window
Multifunctional 200L Climate Control Chamber With Observation Window Multifunctional 200L Climate Control Chamber With Observation Window Multifunctional 200L Climate Control Chamber With Observation Window Multifunctional 200L Climate Control Chamber With Observation Window
Contact Now

Multifunctional 200L Climate Control Chamber With Observation Window

Minimum Order Quantity : 1 Price : To Be Negotiated
Packaging Details : Wooden packing Delivery Time : 30-35 business days after received the payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 per month
Place of Origin: China Brand Name: Envsin
Certification: CE and ISO Model Number: ET6200S2

Detail Information
Product Name: Climatic Test Chamber Test Space Volume(L): 200
Inner Dimensions: 600*550*600mm Outer Dimensions: 1310mm*2700mm*2350mm
Usage: Process Testing Machine Lead Time: 30-35 Days
Power: AC380V±10%,50Hz±1 Cooling Methods: Water-Cooled ( Compliant With IEC 60068-3-5)
High Light:

Multifunctional climate control chamber

,

200L climate control chamber

,

Multifunctional benchtop temperature chamber

Product Description

Visualization Observation Window Climatic Test Chamber Rapid Temp Change Test Chamber



  The climatic test chamber is used for testing non-heat dissipation test samples and low heat dissipation test samples. For the test of heat dissipation test samples, the heat dissipation power should not exceed the temperature control cooling capacity of the refrigeration system of the climatic test chamber, otherwise it will affect the temperature conversion speed and capacity of the climatic test chamber. It is recommended that the heat dissipation of the test samples be less than 300W.



Products Features:

• Optional APP mobility management.

• Fashionable design of modular construction.

• Optional network video monitoring and data synchronization.

• Long defrosting cycles:over 700h's running before defrosting.

• 4 load power outlets for specimens with programmable control for protection.

• Automatic reminder of equipment maintenance plans and software of recording malfunction.

• Environment-friendly refrigerating control technology:energy saving and rapid heating/cooling rate.



Material:

• Outer material: cold rolled steel plate + double-sided electrostatic spraying process

• Inner material: SUS304 high-grade stainless steel plate

• Insulation material: rigid polyurethane foam insulation layer



Specifications:

Model:climatic test chamber		 ET4200S2
ET5200S2
ET6200S2
Test Space Volume(L) 200
Test Zones 2
Hot Chamber Temp.Range(℃) +50/+200
Cold Chamber Temp.Range(℃) -75/+70
Temp. Constancy(℃) ±0.3-±1.0
Temp.Homogeneity(℃) ±1.0-±2.0
Recovery Time(min) <5(on Air Outlet)
Test Space Dimension(mm) 600W*550D*600H
External Dimension(mm) 1200W*2500D*2200H

Temp. Range(℃)

 -40/+150
-55/+150
-65/+150
Max. Specimens Weight (kg) 50
Cooling Methods Water-Cooled(IEC 60068-3-5)
Power AC380V±10%,50HZ,3/N/PE

Compliant with International Standards:

GB/T2423.22

MIL STD 202F (Method 107G)

IEC 60 068-2-14

Test Na BS 2011

DIN 40046,Test Na

JESD22-A101-A

Options Accessories:

Independent sensors for protection (NE60519-2.1993)
1 Entry port Φ100mm
Nitrogen gas auxiliary device
Spare parts package
E-management and cyber-software
Video monitor system
APP for mobility management
