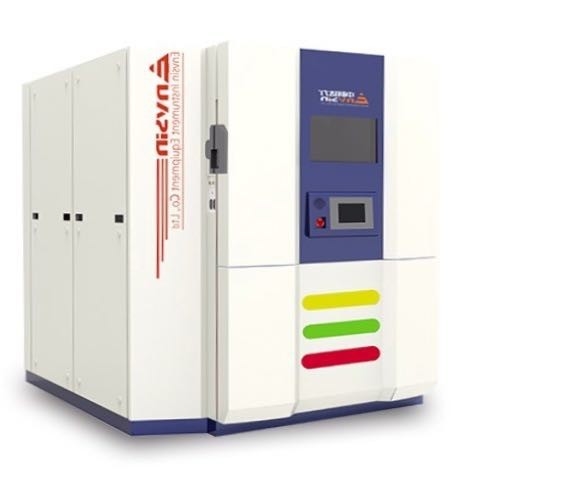

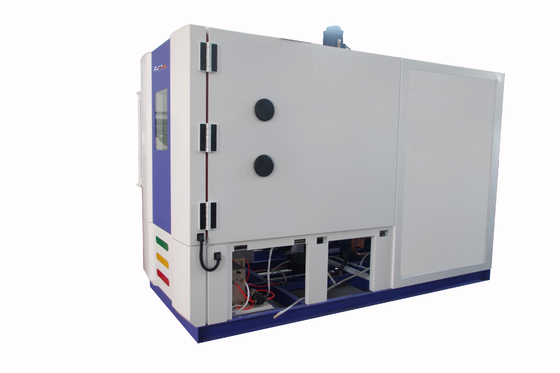

Vertical 2200L -70c-180c Climatic Test Chamber Computer Controlled

Name: Vertical 2200L -70c-180c Climatic Test Chamber Computer Controlled
Brand: Envsin
SKU: ECE
Price: 12000 USD
Availability: InStock
Rating: 4.5 (152 reviews)

Minimum Order Quantity :	1 set	Price :	$12000 >=1 Set
Delivery Time :	35 work days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	20 sets per month

Place of Origin:	Guangdong	Brand Name:	Envsin
Certification:	ISO CE	Model Number:	ECE

Detail Information
Brand Name:	Envsin	Color:	White/ Blue
Certification:	ISO, CE	Vibration Direction:	Vertical Level Vertical+level
Temperature Fluctuation:	±0.1℃~±0.5℃	Temperature Uniformity:	±0.1℃~±2.0℃
High Light:	2200L Climatic Test Chamber , 180c Climatic Test Chamber , 2200L temperature and humidity chamber

Product Description

Computer Controlled Temperature and Humidity /Vibration Test Chamber

This test chamber is suitable for tests in the condition of high temperature ,low temperature ,hot-humid and rapid temperature
change (ESS) while the whole units, parts and materials are vibrating to different degrees.

Our Service

• provide a complete testing solution (customization)

• Patented eye-catching industrial design

• Preferential supplier of Apple and Huawei in China

• Customized pre-sale and after-sale technical supports

Products Features

• Homogeneous temperature linear changing rate capacity up to 40℃/ min.

• Dry air blowing system prevent specimen's surfaces from dewing in rapid temperature change.

• Fashionable design of modular construction.

• 4 load power outlets for specimens with programmable control for protection.

• Special air circulation system inside ensures testing accuracy. (Patented)

• Intelligent and independent protection design for overload, overheat,power supply abnormity, overvoltage, component malfunction monitoring.

• Customer-friendly software : intelligent power-recovery restoration, auto-connect on memory and auto-reset restart.

• Design with independent sensors to prevent specimens from damages caused by dewing, overheat, breezeless and smog.

• Optional network video monitoring and data synchronization.

• Customer-friendly design: observation window in testing space with a reality visualization for real-time monitoring.(Patented)

• Specialized anti-condensation structures to avoid misjudgment and improve testing accuracy during climate testing.

• Automatic water supply with ultrapure filter devices (optional) ; water shortage reminder function.(ECE Series)

• Intelligent and high performance servo refrigerating control technology: energy saving and rapid heating/cooling rate.

• Automatic reminder of equipment maintenance plans and software of recording malfunction.

Products Performance

ECE Climate/Vibration Chambers	4060-5 4060-10 4060-15	7060-5 7060-10 7060-15	4120-5 4120-10 4120-15	7120-5 7120-10 7120-15	4220-5 4220-10 4220-15	7220-5 7220-10 7220-15
Test Space (L)	600		1200		2200
Temperature. Test Parameters:
Temperature. Range (℃)	-40/+180	-70/+180	-40/+180	-70/+180	-40/+180	-70/+180
Temperature. Fluctuation (℃)	±0.1~±0.8
Temperature. Uniformity (℃)	±0.5~±2.0
Temperature. Change Rate (℃/min)	5, 10, 15, 20, 25, 30, 35, 40 (on Air Outlet)
Climate Test Parameters (ECE series):
Temperature. Range (℃)	+10~+95

Options Accessories

• Independent sensors for specimen protection (NE60519-2.1993)
• 1 Entry port Φ50mm
• Automatic water supply device
• Nitrogen gas auxiliary device
• Spare parts package
• E-management and cyber-software
• APP for mobility management
• Horizontal bottom plate with holes

Standard Version

• 3 Power outlets for specimens
• Left and right entry ports Φ100mm
• 2 Silicon stoppers for entry ports
• Drier filter for compressing air
• 1 Water tank with 20L
• 1 Water filter
• Blind plate
• Vertical bottom plate perforated
