Home ProductsClimatic Test ChamberIEC 60068214 150L Stress Screening Climatic Test Chamber Steel

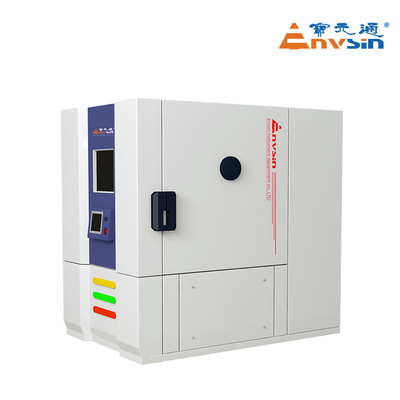

IEC 60068214 150L Stress Screening Climatic Test Chamber Steel
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel IEC 60068214 150L Stress Screening Climatic Test Chamber Steel
Contact Now

IEC 60068214 150L Stress Screening Climatic Test Chamber Steel

Minimum Order Quantity : 1 set Price : $8000 >=1 Set
Delivery Time : 35 work days Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 20 sets per month
Place of Origin: Guangdong Brand Name: Envsin
Certification: ISO CE Model Number: ETS

Detail Information
Power: AC380V±10%, 50HZ, 3/N/P Cooling Way: Water-Cooled( Compliant WithIEC 60068-3-5)
Standard: IEC 60 068-2-14 Color: White/Blue
Test Volume: 80L,150L,252L,335L And Other Customized Volume Temperature Change Range: -55℃~150℃
Temperature Uniformity: ±0.3-±2.0℃ Temperature Fluctuation: ±0.5-±2.0℃
High Light:

150L Climatic Test Chamber

,

IEC 60068214 Climatic Test Chamber

,

150L Environment Stress Screening Test Chambers

Product Description



Computer Controlled Environmental Stress Screening Test Chambers
The test chamber is suitable for evaluating the ability of the whole equipment, components , parts to withstand sudden temperature changes. The temperature shock test can make people know more about the effect of one or several changes on the specimen.The main parameters affecting the temperature change test are the high temperature and low temperature values of the temperature variation range,the temperature change rate,the retention time of the sample at high and low temperatures,and the number of cycles of the test.

Our Service

• Be able to provide a complete testing solution (customization)

• Patented and eye-catching industrial design

• Preferential vendor of Apple and Cisco in China

• Perfect systematic pre-sale and after-sale technical support

Products Features
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 0
• Fashionable design of modular construction.
• Long defrosting cycles: over 700h's running before defrosting.
• Breakthrough-tech design: alternating time between high/low temperature <10 sec.
• 7'' colour touch screen display and 32 bit control system; interface Ethernet/USB.
• Customer-friendly software functions: intelligent power-recovery restoration, autoconnect on memory and auto-reset restart.
• Intelligent and independent protection design for overload, overheat, power supply abnormity, overvoltage, component malfunction monitoring.
• Optional APP mobility management.
• Design with independent sensors to prevent specimens from damages caused by dewing, overheat, breezeless and smog.
• Intelligent and high-efficiency servo refrigerating control
technology: energy saving and rapid heating/cooling rate.
• Unique operation mode: make testing area's temperature back to room temperature after tests are finished.
• Automatic reminder of equipment maintenance plans and software of recording malfunction.
• Optional remote assist service function and teaching CDs.

Application
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 1
Product Paramenters
Model
ETS450S2
ETS550S2
ETS4100S2
ETS5100S2
Test Space Volume (L)
850
100
Test Zones
2
2
Hot Chamber Temp. Range(℃)
+50/+200
+50/+200
Cold Chamber Temp. Range(℃)
-80/+70
-80/+70
Temp. Constancy (℃ )
±0.3-±1.0
±0.3-±1.0
Temp. Homogeneity (℃ )
±0.5-±2.0
±0.5-±2.0
Change Time (sec )
<10 (on Air Outlet)
<10 (on Air Outlet)
Recovery Time (min )
<1 (on Air Outlet)
<2 (on Air Outlet)
Test Space Dimension (mm)
400W×400D×310H
500W×500D×400H
External Dimension (mm)
900W×2300D×2160H
1000W×2400D×2250H
Stress Change Temp. Range (℃)
-40/+150
-55/+150
-40/+150
-55/+150
Max. Specimens Weight (kg)
15
30
Cooling Methods
Water-Cooled ( Compliant withIEC 60068-3-5)
Power
AC380V±10%, 50HZ, 3/N/PE
Compliant with International Standards:
GB/T2423.22 Test Na JESD22-A101-A
MIL STD 202F(method 107G) BS 2011IEC 60 068-2-14 DIN 40046 (Test Na)
Options Accessories
• Entry ports
• Power outlets for specimens
• Spare parts package
• E-management and cyber-software
• Video monitor system
Quality Control
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 2
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 3
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 4
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 5
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 6
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 7
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 8
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 9
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 10
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 11
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 12
IEC 60068214 150L Stress Screening Climatic Test Chamber Steel 13
Standard Version
• Matched rotating shelf for specimens
• Water filter
