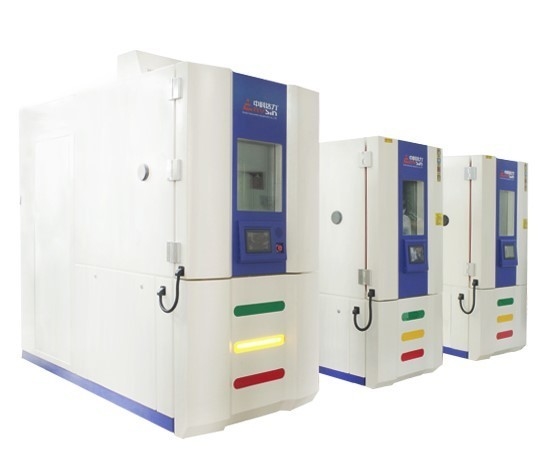

1700L Envsin Environmental Chamber Temperature Humidity Control Blue

Name: 1700L Envsin Environmental Chamber Temperature Humidity Control Blue
Brand: Envsin
SKU: ECE
Price: 12000 USD
Availability: InStock
Rating: 4.9 (143 reviews)

Minimum Order Quantity :	1 set	Price :	$12000 >=1 Set
Delivery Time :	35 work days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	10 sets per month

Place of Origin:	Guangdong	Brand Name:	Envsin
Certification:	ISO CE	Model Number:	ECE

Detail Information
Brand Name:	Envsin	Color:	Blue/White
Power:	AC380V±10%,50HZ, 3/N/PE	Certification:	ISO, CE
Warranty:	1 Year	Test Volume:	600L,1700L And Other Customized Volume
Humidity Range:	10%~98% RH And Other Customized Ranges	Temperature Heating And Cooling Rate:	Can Be Customized, Line And Non-line Adjustable
Vibration Direction:	Vertical Vertical Vertical +level
High Light:	1700L environmental chamber temperature humidity control , Envsin environmental chamber temperature humidity control , 1700L humidity and temperature controlled chamber

Product Description

Rapid Temperature Change Humidity Vibration Comprehensive Test Chamber

This test chamber is suitable for tests in the condition of high temperature ,low temperature ,hot-humid and rapid temperature change (ESS) while the whole units, parts and materials are vibrating to different degrees.

Our Service

• provide a comprehensive testing solution (customization)

• Preferential supplier of Apple and Cisco in China

• Perfect systematic pre-sale and after-sale technical supports

Products Features

• Homogeneous temperature linear changing rate capacity up to 40℃/ min.

• Dry air blowing system prevent specimen's surfaces from dewing in rapid temperature change.

• Fashionable design of modular construction.

• Optional APP mobility management.

• 4 load power outlets for specimens with programmable control for protection.

• Special air circulation system inside ensures testing accuracy. (Patented)

• Intelligent and independent protection design for overload, overheat,power supply abnormity, overvoltage, component malfunction monitoring.

• Customer-friendly software functions: intelligent power-recovery restoration, auto-connect on memory and auto-reset restart.

• Design with independent sensors to prevent specimens

from damages caused by dewing, overheat, breezeless and smog.

• Optional network video monitoring and data synchronization.

• Customer-friendly design: observation window in testing space with a reality visualization for real-time monitoring.(Patented)

• Specialized anti-condensation structures to avoid misjudgment and improve testing accuracy during climate testing. (Patented)(ECE Series)

• Automatic water supply with ultrapure filter devices (optional) ; water shortage reminder function.(ECE Series)

• Unique operation mode: make testing area's temperature back to room temperature after tests are finished.

• Automatic reminder of equipment maintenance plans and software of recording malfunction.

CDs.

Products Performance

ECE Climate/Vibration Chambers	4060-5 4060-10 4060-15	7060-5 7060-10 7060-15	4120-5 4120-10 4120-15	7120-5 7120-10 7120-15	4220-5 4220-10 4220-15	7220-5 7220-10 7220-15
Test Space Volume (L)	600		1200		2200
Temperature. Test Parameters:
Temperature. Range (℃)	-40/+180	-70/+180	-40/+180	-70/+180	-40/+180	-70/+180
Temperature Constancy (℃)	±0.1~±0.8
Temperature. Homogeneity (℃)	±0.5~±2.0
Temperature. Change Rate (℃/min)	5, 10, 15, 20, 25, 30, 35, 40 (on Air Outlet)
Climate Test Parameters (ECE series):
Temperature. Range (℃)	+10~+95

Options Accessories• Independent sensors for specimen protection (NE60519-2.1993)

• 1 Entry port Φ50mm

• Automatic water supply devices

• Nitrogen gas auxiliary device

• Spare parts package

• E-management and cyber-software

• APP for mobility management

• Horizontal bottom plate with holes

Quality Control

Standard Version• 3 Power outlets for specimens

• Left and right entry ports Φ100mm

• 2 Silicon stoppers for entry port

• Drier filter for compressing air

• 1 Water tank with 20L
1 Water filter

• Blind plate

• Vertical bottom plate perforated
