Stainless Steel Stand Type 25ppm 500L Gas Test Chamber For Sulphur Dioxide

Minimum Order Quantity : 1 Price : USD13,000 Per Set
Delivery Time : 30 Payment Terms : T/T, Western Union
Place of Origin: Guangdong China Brand Name: Envsin
Certification: CE Model Number: EQF2330

Detail Information

Production Name: Gas Corrosion Test Chamber Warranty: 1 Year
Wind Speed: ≤1.7m/s Certification: CE, ISO
Gas Concentration: 5ppb~30ppm Gas Flowmeter: H2S,SO2,NO2,CI2
Usage: Universal Testing Machine Power: AC380V 50HZ
High Light:

500L Gas Test Chamber


25ppm Gas Test Chamber


500L gas test equipment

Product Description

1Stand Type 500l 800l 25ppm H2s Co2 So2 Sulphur Dioxide Gas Corrosion Test Chamber


Our service:

• Be able to provide a complete testing solution (customization)

• Patented and eye-catching industrial design

• Preferential vendor of Apple and Cisco in China

• Perfect systematic pre-sale and after-sale technical support

SO2 Noxious Gas Test Chambers reproduce damages by temperature, relative humidity and noxious gas Corrosion to material, components and constructions.

This noxious gas chamber can be used for single gas tests and mixed gas tests.

Main Technical Parameters (Product Model:EQF2330)




Temperature Test

Temperature range:20℃~+45



1. Test in accordance with GB/T2423 and IEC60068
under empty chamber condition (except indicated).
2. The test data of the water-cooled
test chamber are under the conditions that the water
temperature is less than 28, the water pressure is between 0.3Mpa and 0.6Mpa, and the
water pressure difference between inlet and outlet is more than 0.2Mpa.


Temperature uniformity:≤2.0
Temperature deviation:≤±2.0
Temperature fluctuation:≤±0.5

Temperature rate:≥1/min





Temperature and Humidity Climatic Test

Humidity temperature control range:20~+50

Humidity range:50%RH~85%RH

Humidity uniformity:±5.0%RH
Humidity deviation: +2.0%~3%RH(>75%RH)±5%R.H(≤75%RH)
Humidity deviation: +2.0%~3%RH(>75%RH)±5%R.H(≤75%RH)



Gas Concentration

The deviation of gas concentration in the chamber shall not exceed 10% of the set concentration,Concentration uniformity deviation of 10%
The empty chamber operation request meets the IEC60068-2-60 standard
Gas concentration measurement By calculating the volume ratio and then through the mass flowmeter measurement
On load capacity 500W,The temperature can be stable, the chamber body is not deformed
Noise Working noise ≤70dB (measured at 1 meter away from the test chamber)
Wind speed ≤1.7m/s
Gas flowmeter H2S,SO2,NO2,CI2







GB/T 2423.1-2001 / (IEC60068-2-1:2007) Test A: Low temperature test method
GB/T 2423.2-2001 / (IEC60068-2-2:2007) Test B: High temperature test method
GB/T 2423.3-2006 / (IEC60068-2-78:2007) Test Cab: Constant humidity and heat test
GB/T 2423.4-2008 / (IEC60068-2-30:2005) Test Db: alternating humidity and heat test
GJB 150.3-1986 / GJB 150.3A-2009 High-temperature test
GJB 150.4-1986 / GJB 150.4A-2009 Low temperature test
GJB 150.9-1986 / GJB 150.9A-2009 Thermal-humidity test
IEC60068-2-60 Test Method KE: Man-made low concentration pollution gas corrosion test
GB/T2423.51-2000 Environmental testing of electrical and electronic products Test KE: Flow mixed gas corrosion test

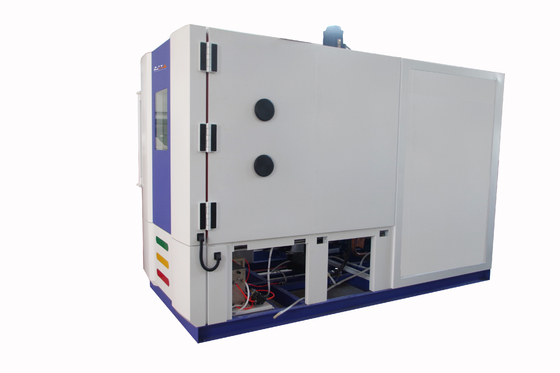

Stainless Steel Stand Type 25ppm 500L Gas Test Chamber For Sulphur Dioxide 0


Stainless Steel Stand Type 25ppm 500L Gas Test Chamber For Sulphur Dioxide 1
