OEM Welcome GB/T 2423.1 Temperature And Humidity Test Chamber High Precision

Minimum Order Quantity : 1 Price : To Be Negotiated
Packaging Details : Wooden packing Delivery Time : 30-35 business days after received the payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 per month
Place of Origin: China Brand Name: Envsin
Certification: CE and ISO Model Number: ET4008

Detail Information

Product Name: Climatic Test Chamber Customized Support: OEM, ODM, OBM
Temp. Range(℃): -40/+180 Cooling Methods: Air-Cooled
After-sale: 1 Year Warranty Application: Temperature Climatic Testing Machine
High Light:

GB/T 2423.1 temperature and humidity test chamber

,

OEM temperature and humidity test chamber

,

GB/T 2423.1 constant climate chamber

Product Description

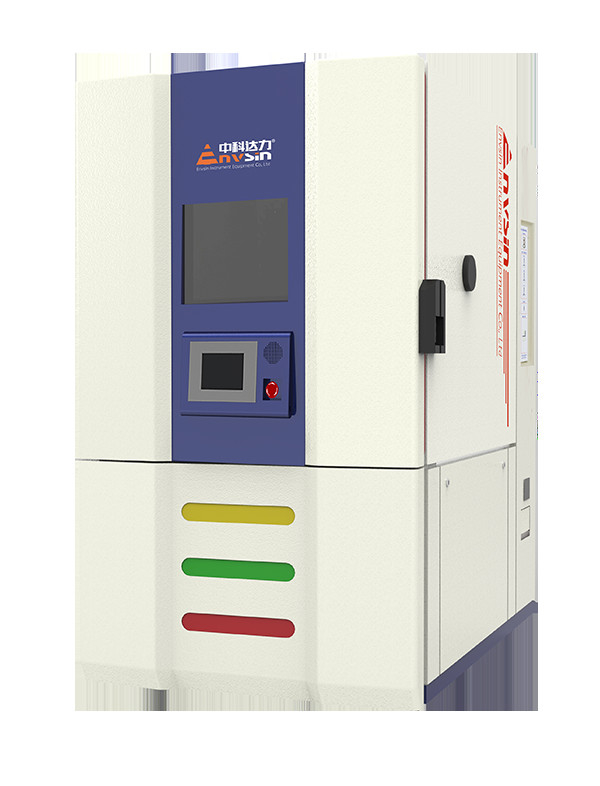

High Precision Climatic Test Chamber For High Low Temperature Test

The climatic test chamber is suitable for testing equipment, parts and materials under constant high temperature,low temperature or temperature cycle conditions.The climatic test chamber can be used for the heat dissipation test sample and non-heat dissipation test

sample test.



For the test of heat dissipation test sample, the heat dissipation power can not exceed the cooling capacity of the refrigeration system of the test chamber,because the control of temperature is a dynamic balance process, at different temperature points, the cooling capacity of the refrigeration system is also accompanied by changes.


Standard:
  • GB/T 2423.1 low temperature test method
  • GB/T 2423.2 high temperature test method
  • GB/T2423.22 temperature cycle test method
  • GJB 150.3 high temperature test
  • GJB 150.4 low temperature test
  • IEC 60068-2 temperature test method

Products Features:
• 7''colour touch screen display and 32 bit control system;interface Ethernet/USB.

• 4 load power outlets for specimens with programmable control for protection.
• Specialized air circulation system inside ensures testing accuracy.(Patented)
• Design with independent sensors to prevent specimens from damages caused by dewing,overheat,breezeless and smog.
• Optional network video monitoring and data synchronization.
• Outstanding design of no-need defrosting during long period operation in low temperature.
• Fashionable design of modular construction.

• Optional APP mobility management.
• Environment-friendly refrigerating control technology: energy saving and rapid heating/cooling rate.
• Unique operation mode: make testing space's temperature back to room temperature after tests are finished.
• Automatic reminder of equipment maintenance plans and software of recording malfunction.
• Optional remote-assist service function and teaching CDs.

Product Paramenters:
Model: Climatic Test Chamber ET4008 ET7008 ET4100 ET7100
Test Space Volume(L) 80 1000
Temperature Range(℃) 40/+180 -70/+180 -40/+180 -70/+180
Temperature Constancy (℃) ±0.1- ±0.5
Temperature Homogeneity (℃) ±0.1- ±2.0
Heating Rate (℃/min) 3.3 3.3 3.2 3.5
Cooling Rate (℃/min) 3.0 2.7 2.5 2.3
Test Space Dimension(mm) 400W*400D*500H 1100W*950D*950H
External Dimension(MM) 650W*1000D*1750H 1390W*2155D*1995H
Max. Specimen Weight(kg) 5 100
Cooling Methods Air-Cooled

Options Accessories:

Independent sensors for specimen protection (NE60519-2.1993)

1 Entryport Φ100mm

Drier filter for compressing air

Nitrogen gas auxiliary device

Air-Cooled unit

Spare parts package

E-management and cyber-software

Video monitor system

APP for mobility management

Standard Version:

2 Silicon stoppers for entry ports

2 Stainless steel shelves

3 Power outlets for specimens

Left and right entry ports Φ50mm

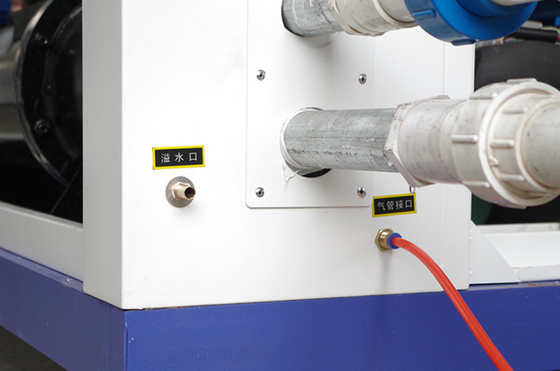

OEM Welcome GB/T 2423.1 Temperature And Humidity Test Chamber High Precision 0



​Factory View:
Eighty percent of the company's members are college graduates or above, with nearly 100 R&D technical teams and independent R&D laboratories. R&D team core technical personnel, industry experience are maintained for more than 10 years, greatly ensuring the R&D, technology industry advanced Baoyuan Tong, and to the greatest extent to ensure the high reliability of product quality, high quality. We
can develop new materials, new products and provide non-standard products and services according to different customer needs.

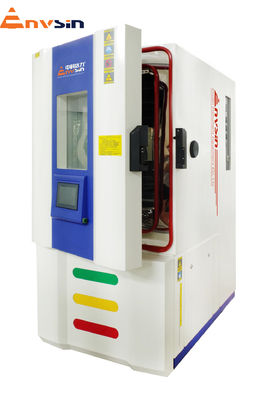

OEM Welcome GB/T 2423.1 Temperature And Humidity Test Chamber High Precision 1
