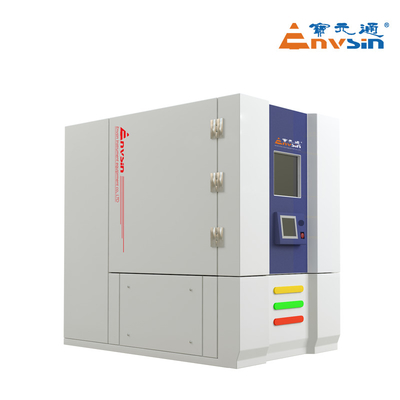

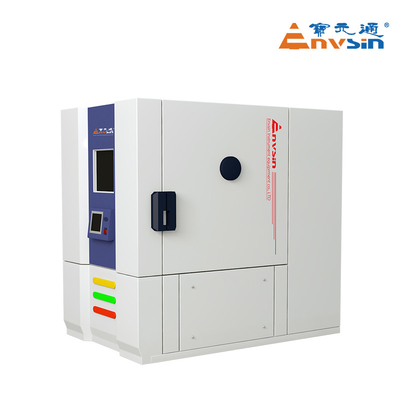

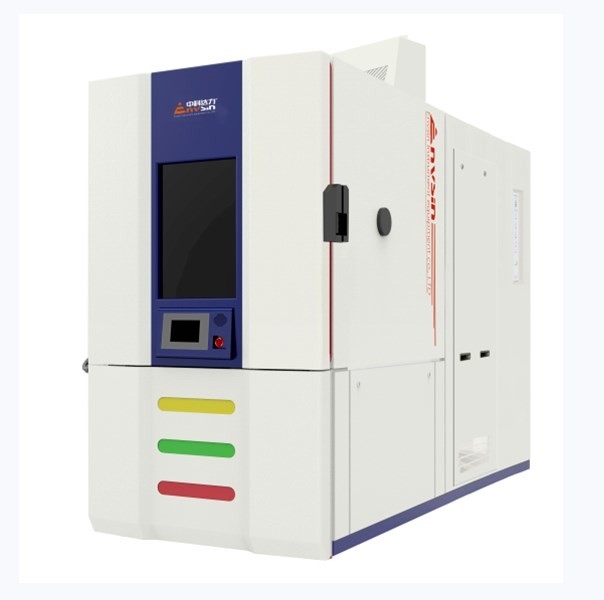

2200L Benchtop Environmental Control Chamber Stainless Steel

Minimum Order Quantity : 1 Price : To Be Negotiated
Packaging Details : Well packed in strong wooden case suitable for all types of long distance shipment. Delivery Time : 30-35 business days after received the payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 per month
Place of Origin: China Brand Name: Envsin
Certification: CE and ISO Model Number: ECE7220

Detail Information

Product Name: Environmental Chamber Test Space Volume (L): 2200
Temp. Range (℃): +10~+95 Temp. Constancy (℃): ±0.1~±0.5
Temp. Homogeneity (℃): ±0.1~±2.0 Humid. Range (%RH): 10~96 (98%RH With Blind Plate)
Humid. Constancy (%RH): ±1~±3 Application: Vibration Environmental Chamber
High Light:

benchtop Environmental Control Chamber

,

2200L environmental control chamber

,

2200L benchtop environmental chamber

Product Description

Stainless Steel Environmental Chamber Vibration Environmental Chamber



The environmental chamber is suitable for the whole machine, parts, materials for high temperature, low temperature,humid heat and

rapid temperature change (ESS), vibration comprehensive conditions test.The environmental chamber can be used for the heat dissipation

test sample and non-heat dissipation test sample test.For the test of heat dissipation test sample, the heat dissipation power can not

exceed the cooling capacity ofthe refrigeration system of the test chamber, because the control of temperature and humidity is a dynamic

balanceprocess, in different temperature and humidity points, the cooling capacity of the refrigeration system is also accompanied by changes.


Products Features:
  • Optional network video monitoring and data synchronization.
  • Customer-friendly design: observation window in testing space with a reality visualization for real-time monitoring.(Patented)
  • Specialized anti-condensation structures to avoid misjudgment and improve testing accuracy during climate testing. (Patented)
  • Automatic water supply with ultrapure filter devices (optional) ; water shortage reminder function.
  • Intelligent and high performance servo refrigerating control technology: energy saving and rapid heating/cooling rate.
  • Unique operation mode: make testing area's temperature back to room temperature after tests are finished.
  • Automatic reminder of equipment maintenance plans and software of recording malfunction.
  • Optional remote assist service function and teaching CDs.



Specifications:

ETE Temperature

ECE Climate

4060-5

4060-10

4060-15

7060-5

7060-10

7060-15

4120-5

4120-10

4120-15

7120-5

7120-10

7120-15

4220-5

4220-10

4220-15

7220-5

7220-10

7220-15

Test SpaceVolume  600L 1200L 2200L
Temp. Test Parameters:
Temp. Range (℃) -40/+180 -70/+180 -40/+180 -70/+180 -40/+180 -70/+180
Temp. Constancy  ±0.1~±0.8(℃)
Temp. Homogeneity  ±0.5~±2.0(℃)
Temp. Change Rate  5, 10, 15, 20, 25, 30, 35, 40 (on Air Outlet) (℃/min)
Climate Test Parameters (ECE series):
Temp. Range  +10~+95(℃)
Temp. Constancy  ±0.1~±0.5(℃)
Temp.Homogeneity  ±0.1~±2.0(℃)
Humid. Range (%RH) 10~96 (98%RH with blind plate)
Humid. Constancy  ±1~±3(%RH)

Dewpoint Temp. Range (℃)

+4~+94(with blind plate)/+4~+59(with vertical bottom plate perforated)/+4~+40(with horizontal bottom plate with hole)±1~±3
Vertical Bottom Plate Size

max.φ710mm

max.φ710mm

max.φ710mm

Horizontal Bottom Plate Size

max.700×700mm

max.700×700mm

max.700×700mm

Test Space Dimension(mm)

800W*800D*950H

1100W*1100D*950H

1400W*1400D*1100H

External Dimension(mm)

1220W*2890D*2150H

1525W*3590D*2150H

1825W*3950D*2300H

Power AC380V±10%, 50HZ, 3/N/PE
Cooling Methods Water-Cooled

Options Accessories:

Independent sensors for specimen protection (NE60519-2.1993)

1 Entry port Φ50mm

Automatic water supply device

Nitrogen gas auxiliary device

Spare parts package

E-management and cyber-software

Video monitor system

APP for mobility management

Horizontal bottom plate with holes

Standard Version:

3 Power outlets for specimens

Left and right entry ports Φ100mm

2 Silicon stoppers for entry ports

Drier filter for compressing air

1 Water tank with 20L

1 Water filter

Blind plate

Vertical bottom plate perforated



Standard:
  • GB/T 2423.1 Low temperature test
  • GJB 150.4 low temperature test
  • GB/T 2423.2 high temperature test
  • GJB 150.9 damp heat test
  • GB/T2423.22 temperature change test
  • IEC60068-2 temperature and humidity test
  • GB/T2423.34 humid heat cycle test
  • MIL-STD-202G-103B humidity test
  • GJB 150.3 high temperature test
  • GJB899A ship, submarine test section

2200L Benchtop Environmental Control Chamber Stainless Steel 0



About Our Factory:

Envsin has been building test chambers in China since 1996.Our Mission Committed to be a world-class manufacturer of environmental

simulation equipments.Meet the needs of customers while improving production efficiency and product quality.Meet the needs of all employees to enhance their capability and achieve self-fulfillment.Be a responsible company, work hand in hand with our clients for a

long-lasting partnership.


2200L Benchtop Environmental Control Chamber Stainless Steel 1
Over the years, Envsin testing equipment has patented technical protection on the hydroelectric separation system, full-coverage constant temperature circulation system, anti-dripping test chamber , ultrasonic humidification function. Yet, We are continuously improving our products and absorbing the trends, and make sure we offer the up to-date techniques to our customers.

2200L Benchtop Environmental Control Chamber Stainless Steel 2
