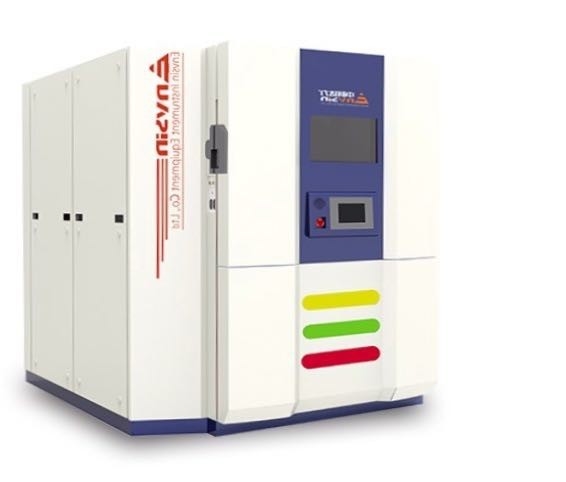

Temperature and Humidity Test Chamber for Circuit boards Semiconductors Electronic Eevices

Name: Temperature and Humidity Test Chamber for Circuit boards Semiconductors Electronic Eevices
Brand: Envsin
SKU: ETS
Rating: 4.5 (182 reviews)

Minimum Order Quantity :	1	Packaging Details :	Woden Case
Delivery Time :	2Months~3Months	Payment Terms :	T/T, Western Union

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE	Model Number:	ETS

Detail Information
Name:	Climate Test Chamber	Temperature Range:	-40℃~180℃
Humidity Range:	RH 10%~98%	Power Supply:	AC380V
Temp. Fluctuation:	±0.3(℃) - ±1.0 (℃)	Temp. Uniformity:	±0.5(℃) - ±2.0(℃)
Highlight:	100L thermal shock tester , 200 degree thermal shock tester , 200 degree high temperature chamber

Product Description

Temperature and Humidity Test Chamber for Circuit boards Semiconductors Electronic Eevices

Functions:

Climate test chambers are precision equipment used to create stable environmental conditions to evaluate the performance and reliability of products and materials. Their key features include:

Temperature Control: Wide range from -70°C to +150°C, depending on the model.
Humidity Regulation: Maintains relative humidity from 10% to 98%.
Precise Control: High accuracy in temperature and humidity regulation for reliable testing.
Customizable Test Cycles: Automated programs for short-term or long-term testing.

Applications:

These chambers are widely used in various industries for testing product endurance and quality under controlled temperature and humidity conditions, such as:

Electronics: Verifying the durability of circuit boards, semiconductors, and electronic devices.
Automotive: Testing vehicle components like sensors, interiors, and electronics.
Aerospace: Assessing material performance under extreme environmental conditions.
Pharmaceuticals: Conducting stability tests for drugs and medical devices.
Textiles and Plastics: Evaluating the durability and stability of fabrics and polymers.

Features

★ 7" colour touch screen display and 32 bit control system; interfce Ethernet/USB	★ Automatic reminder of equipment maintenance plans and software of recording malfunction
★ Customer-friendly software functions: intelligent power-recovery restoration, auto-connect on memory and auto-reset restart.	★ Customer-friendly software: observation window in testing space with a reality visualization for real-time monitoring
★ Intelligent and independent protection design for overload, overheat, powersupply abnormity, overvoltage, component malfunction monitoring	★ Unique operation mode: make testing area's temperature back ro room temperature after tests are finished

Temperature and Humidity Test Chamber for Circuit boards Semiconductors Electronic Eevices 0

Specifications

Model	ETS4100S2
Model	ETS5100S2
Test Space Volume (L)	100
Test Zone	2
H.T Chamber Temp. Range (℃)	+50/+200
L.T Chamber Temp. Range (℃)	-80/+70
Temp. Fluctuation (℃)	±0.3 - ±1.0
Temp. Uniformity (℃)	±0.5 - ±2.0
Stress Change Time (sec)	more than 10sec (on Air outlet)
Recovery Time (min)	less than 1min (on Air outlet)
Test Area Dimension WDH(mm)	500W500D400H
Exterior Dimension	100W2400D2250H
Stress Change Temp. Range (℃)	-200/+100(Customizable)
2-Cased Type (℃)	-40/+150
2-Cased Type (℃)	-55/+150
Max. Load (KG)	30
Power	AC380V±10%,50HZ,3/N/PE

Options	Standard Version
☆ APP for mobility management	☆ 2 Stainless steel shelves
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ Left and right entry ports Φ50mm
☆ 1 Entry port Φ100mm	☆ 2 Silicon stoppers for entry ports
☆ Nitrogen gas auxiliary device
☆ Spare parts package
☆ E-management and cyber-software
☆Video monitor system
☆ Automatic Water supply device

Temperature and Humidity Test Chamber for Circuit boards Semiconductors Electronic Eevices 7
