7'' Color Touch Screen Climatic Test Chamber , ESS Test Chamber

Minimum Order Quantity : 1 Price : To Be Negotiated
Packaging Details : Wooden packing Delivery Time : 30-35 business days after received the payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 per month
Place of Origin: China Brand Name: Envsin
Certification: CE and ISO Model Number: ETS508S3

Detail Information

Product Name: Climatic Test Chamber Test Space Volume(L): 80
Test Zones: 3 Cold Chamber Temp.Range(℃): -70/+70
Temp. Constancy(℃): ±0.3-±1.0 Temp. Homogeneity(℃): ±0.5-±2.0
Recovery Time (min): < 15min ESS Temp. Rate (℃): 3~15/15~30 (on Specimen)
High Light:

7'' screen Climatic Test Chamber


ESS Testing Climatic Test Chamber


7'' screen ess test chamber

Product Description

7'' Color Touch Screen Display Climatic Test Chamber Ess Testing


   The climatic test chamber is suitable for examining the ability of the whole machine, components,parts and other components to

withstand rapid temperature change, and can understand the influence of thetest sample once or repeatedly due to the temperature

change in a certain speed. The main parameters affecting the temperature change test are the high and low temperature values in the

range of temperature change, the speed of temperature change, the holding time of the sample at high and low temperature, and the

number of cycles of the test, etc.This climatic test chamber is used for testing non-heat dissipation test samplesand low heat dissipation

test samples. For the test of heat dissipation test samples, the heat dissipation powershould not exceed the temperature control cooling capacity of the refrigeration system of the climatic test chamber ,otherwise it will affect the temperature conversion speed and capacity

of the climatic test chamber. It is recommended that the heat dissipation of the test samples be less than 300W.


Products Features:
• Creative temperature changing rates: 3-30℃/min, 10-40℃/min.
• Rapid rate temperature change; 2/3 zones temperature shock testing.
• Fashionable design of modular construction.
• Customer friendly design: optional observation window with a reality visualization.(Patented)
• 7'' colour touch screen display and 32 bit control system; interfaceEthernet/USB.
• 4 load power outlets for specimens with programmable control for protection.
• Design with independent sensors to prevent specimens from damages caused by dewing, overheat,
breezeless and smog.



MIL STD 202F,method 107G

IEC 60068-2-14,Test Na

BS 2011

DIN 40046,Test NaJESD22-A101-A


GJB 150.5-1986



IEC 60068-2-14

JIS C 60068-2-14

JASO D 014 – 4


Stress screening:

IEC 60749-25 (JESD22-A104D)

IEC 60068-2-14NB (JIS C0025NB)

IEC 61747-5 (EIA JED-2531A)






Model:climatic test chamber

ETS580S3 ETS5150S3 ETS5250S3 ETS5340S3
ETS680S3 ETS6150S3 ETS6250S3 ETS6340S3
Test Space Volume(L) 80 150 252 335
Test Zones 3

Room Temperature Chamber(℃)


Cold Chamber Temp.Range(℃) -70/+70 -75/+70 -75/+70 -75/+70
Temp. Constancy(℃) ±0.3-±1.0 ±0.3-±1.0 ±0.3-±1.0 ±0.3-±1.0
Temp. Homogeneity(℃) ±0.5-±2.0 ±0.5-±2.0 ±1.0-±2.0 ±1.0-±2.0
Recovery Time (min) < 15min < 15min < 15min < 15min
ESS Temp. Range (℃) -40/+125 -55/+125 -55/+125 -55/+125
ESS Temp. Rate (℃)


(on specimen)


(on specimen)


(on specimen)


(on specimen)

Test Space Dimension (mm) 500*400*400 600*500*500 7700*600*600 800*650*650
External Dimension (mm) 1460*1900*2050 1560*2100×2150 1700*2300*2250 1800*2500*2300
Temperature Range (℃) -55/+150 -55/+150 -55/+150 -55/+150
Temperature Range (℃) -65/+150 -65/+150 -65/+150 -65/+150
Max.Specimens Weight (kg) 10 25 50 70
Cooling Methods Water-Cooled(Compliant with IEC 60068-3-5)
Power AC380V±10%, 50HZ,3/N/PE
Compliant with International Standards:

IEC 60749-25 (JESD22-A104D) JESD22-A105-B

IEC-60068-2-14NB(JIS C0025NB) IPC-9701

IEC-61747-5(EIAJED-2531A) SAE-J1211

Options Accessories:

Independent sensors for specimen protection (NE60519-2.1993)

1 Entry portΦ100mm

Automatic water supply device

Nitrogen gas auxiliary device

Spare parts package

E-management and cyber-software

Video monitor system

APP for mobility management

Standard Version:

3 Power outlets for specimens

Left and right entry ports Φ50mm

2 Silicon stoppers for entry ports

2 Stainless steel shelves


About Our Factory:

Our solutions are widely used in military, aerospace, shipbuilding, industrial manufacturing, science and technology research and

development,quality management and other fields; We have 18 service centers in 16 countries around the world, providing you with

the most creative solutions and services immediately.

7'' Color Touch Screen Climatic Test Chamber , ESS Test Chamber 0


Company Production Capacity:

1. Product manufacturing process

Each of the company's products through strict process control, through its comprehensive verification after delivery

and customer rest assured use.

2. Production capacity

Automatic original imported sheet metal production line to effectively control product precision and production cycle.

3. Quality inspection

Strict process and finished product inspection standards ensure the reliability of the products and strictly implement ISO

traceability provisions.

Well packed in strong wooden case suitable for all types of long distance shipment.

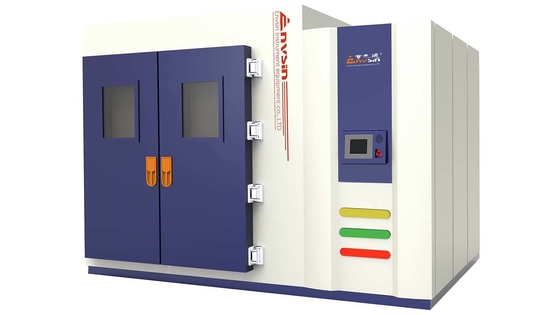

7'' Color Touch Screen Climatic Test Chamber , ESS Test Chamber 1

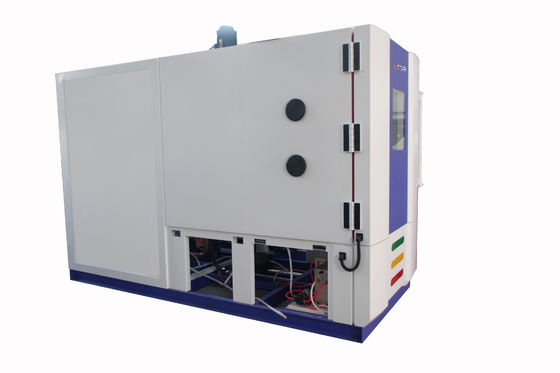

7'' Color Touch Screen Climatic Test Chamber , ESS Test Chamber 2
