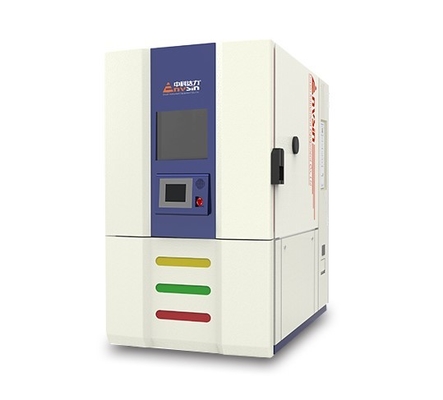

High Precision IEC Standard AC 380V Gas Test Chamber Stainless Steel

High Precision IEC Standard AC 380V Gas Test Chamber Stainless Steel

High Precision IEC Standard AC 380V Gas Test Chamber Stainless Steel

Brand Name:	Envsin
Model Number:	EQF
MOQ:	1 set
Price:	$12000 >=1 Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO CE

Warranty:

12 Months

Power:

AC380v 50Hz/60Hz

Gas Concentration:

5ppm~30ppm

Gas:

H2S,SO2,NO2,Cl2

Wind Speed:

≤ 1.7m/s

Supply Ability:

10 sets per month

Highlight:

380V Gas Test Chamber

,

IEC Gas Test Chamber

,

IEC walk in environmental test chambers

Product Description

Product Overviews

25ppm NO2 SO2 Cl2 H2S Gas Corrosion Test Chamber

Our service:

•provide a comprehensive testing solution (customization)

•Preferential supplier of Apple , Huawei in China.

•Perfect systematic pre-sale and after-sale technical supports

Stand Type 500l 800l 25ppm H2s Co2 So2 Sulphur Dioxide Gas Corrosion Test Chamber

Application:

Stand Type 500l 800l 25ppm H2s Co2 So2 Sulphur Dioxide Gas Corrosion Test Chamber

Specification

Main Technical Parameters (Product Model:EQF)
Temp test	Temp range: 20℃~+45℃	Remark: 1. Test in accordance with IEC60068 under empty chamber condition (except indicated). 2. The test data of the water-cooled test chamber are under the conditions that the water temperature is less than 28, the water pressure is from 0.3MPa to 0.6MPa, and the water pressure difference between inlet and outlet is more than 0.2MPa.
	Temp uniformity : ≤2.0℃
	Temp deviation: ≤±2.0℃
	Temp fluctuation: ≤±0.5℃
	Temp rate:≥ 1℃/min
Temp and humidity test	Temp control range: 20℃~+50℃ Humidity range: 50% RH~85% RH
	Humidity uniformity: ±5.0% RH
	Humidity deviation: +2.0% ~ 3%RH( >75%RH)±5%R.H( ≤75%RH)
	Humidity fluctuation: ±5.0%RH
Gas concentration	5ppm~30ppm
	The deviation of gas concentration in the test chamber shall not exceed 10% of the set concentration,concentration uniformity deviation of 10%
	The empty chamber operation meets the IEC60068-2-60 standard
Gas concentration measurement	By calculating the volume ratio and then through the mass flowmeter measurement
On load capacity	500W,The temperature can be stable, the chamber body is not deformed
Noise	Working noise ≤70dB ( measured at 1 meter away from the test chamber)
Gas flowmeter	H2S,SO2,NO2,CI2
Standard	IEC60068-2-1:2007 Test A: Low temperature test method
	IEC60068-2-2:2007 Test B: High temperature test method
	IEC60068-2-78:2007 Test Cab: Constant humidity and heat test
	IEC60068-2-30:2005 Test Db: alternating humidity and heat test

Quality Control

Stand Type 500l 800l 25ppm H2s Co2 So2 Sulphur Dioxide Gas Corrosion Test Chamber

High Precision IEC Standard AC 380V Gas Test Chamber Stainless Steel 3
