Weathering Resistance Environmental Chamber Temperature Environmental Chamber

Minimum Order Quantity : 1 Price : To Be Negotiated
Packaging Details : Wooden packing Delivery Time : 30-35 business days after received the payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 per month
Place of Origin: China Brand Name: Envsin
Certification: CE and ISO Model Number: EZH3 Series

Detail Information

Product Name: Environmental Chamber Chamber Volume: 3.3( M³)
Temp. Range (℃): -70 ~ +150 Temp. Constancy (℃): ±0.1~±0.8
Temp. Homogeneity (℃): ±2.0 Temp. Accuracy (℃): ±2.0
Humid. Range (%RH): 15~98 Low Pressure Limiting Range (Kpa): 7.6
Radiation Intensity (W/m²): 1000~1200 Fresh Air Ventilation Rate (L/Min): 500~2000 Adjustable
Power: AC380V±10%, 50HZ, 3/N/PE Cooling Methods: Water-Cooled
High Light:

ISO Climatic Test Chamber

,

multipurpose Climatic Test Chamber

,

multipurpose environmental temperature chamber

Product Description

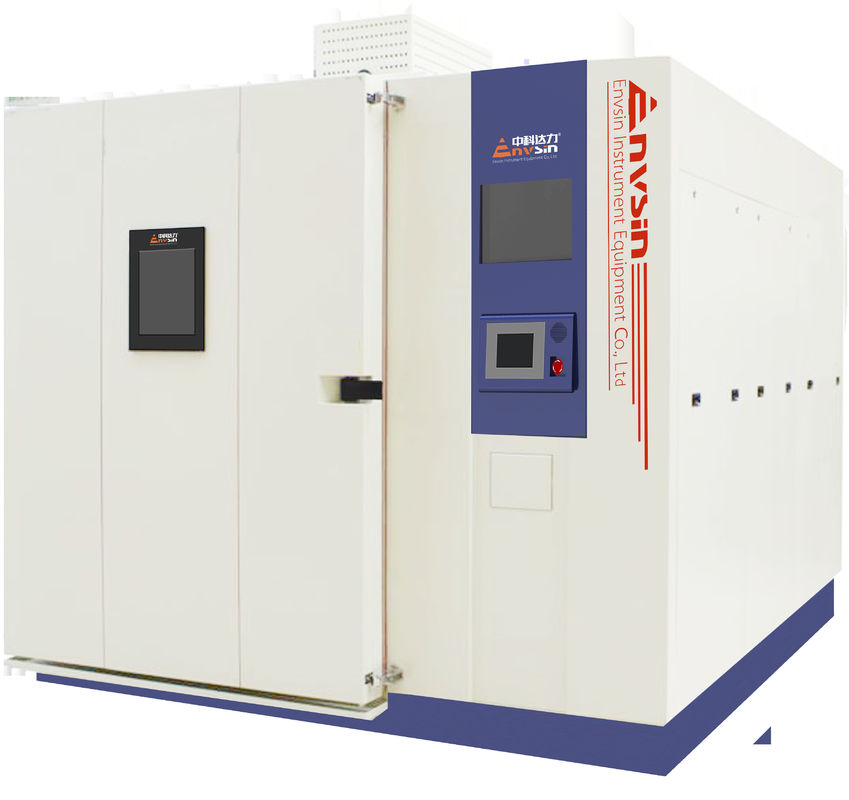

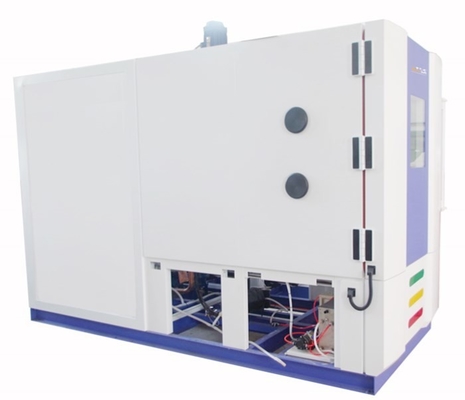

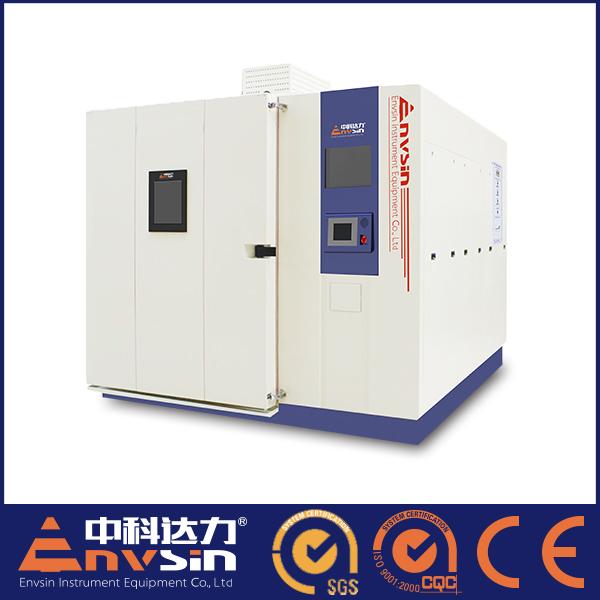

Weathering Resistance Environmental Chamber Temperature Environmental Chamber



This environmental chamber integrates temperature, humidity, altitude, solar and fresh air purging functions into one, and builds a comprehensive weather test program that can be used to simulate various environmental climates.


Environmental chamber Features:
•Optional APP mobility management.

• Fashionable design of modular construction.

• 4 load power outlets for specimens with programmable control for protection.

• 7'' colour touch screen display and 32 bit control system; interface Ethernet/USB.

• Stable control of radiation with intelligent software; illumination intensity adjustable.

• Specialized design of air circulation system inside ensures testing accuracy .(Patented)

•Break through design: simulating five environment parameters combined together for testing.


Specifications:
Model:environmental chamber EZH3 Series EZH6 Series
Test Space Volume (m³) 3.3 6
Outside Environment Temp.: 0℃~+35℃, Humid.: ≤85%RH
Outside Conditions Atmospheric Pressure No Load
Temp. Range (℃) -70 ~ +150 -50 ~ +150
Temp. Constancy (℃) ±0.1~±0.8 ±0.1~±0.8
Temp. Homogeneity (℃) ±2.0
Temp. Accuracy (℃) ±2.0
Humid. Range (%RH) 15~98
Low Pressure Limiting Range (Kpa) 7.6
Radiation Intensity (W/m²) 1000~1200
Fresh Air Ventilation Rate (L/Min) 500~2000 adjustable
Test Space Dimension (mm) 1500W*1500D*1500H 1500W*2000D*2000H
Power AC380V±10%, 50HZ, 3/N/PE
Cooling Methods Water-Cooled

Options Accessories

Standard Version

• Independent sensors for specimen protection (NE60519-2.1993)

• 1 Xenon lamp

• 1 Entry port Φ100mm

• 1 Testing electrode

• Nitrogen gas auxiliary device

• 1 Air filter

• Spare parts package

• 1 Electronic temperature and humidity sensor

• E-management and cyber-software



• Video monitor system



• APP for mobility management





Services:
  • We have set up a number of tough emergency service team, on-site experienced engineers and senior technicians,they are able to arrive on the scene in the fastest time for any problems, maintenance and replacement.
  • Complaint regarding product quality to be replied within 1 hour, and to offer the solutions based on the use of the machines and status of the products.
  • Any quality issues or defects of the products occur during warranty coverage, the costs borne by Envsin.
  • Improper use during warranty period, or the natural environmental causes, free repairing is provided, the materials and accessories are chargeable.
  • Beyond the warranty period of the product, our company promises lifelong regular on-site inspection and maintenance.
