990L Rapid Change Temperature Test Chamber Water Cooled AC380V

Contact Now

990L Rapid Change Temperature Test Chamber Water Cooled AC380V

Name: 990L Rapid Change Temperature Test Chamber Water Cooled AC380V
Brand: Envsin
SKU: ETS7060-15
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (146 reviews)

Minimum Order Quantity :	1	Price :	To Be Negotiated
Packaging Details :	Wooden packing	Delivery Time :	30-35 business days after received the payment
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	25 per month

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE and ISO	Model Number:	ETS7060-15

Detail Information
Product Name:	Climatic Test Chamber	Test Space:	600L
Internal Size:	800×800×950mm (W×D×H)(W×D×H)	External Size:	1090mmx1960mmx1995mm (W×D×H)
Power Supply:	AC380V±10%,50Hz±1,60A,	Max. Power:	60KW（normal 35KW）
Max. Currency:	100A(normal 30A)	Cooling Method:	Water -Cooled（Cooling System)
High Light:	CE Temperature Test Chamber , 990L Temperature Test Chamber , AC380V Climatic Test Chamber

Product Description

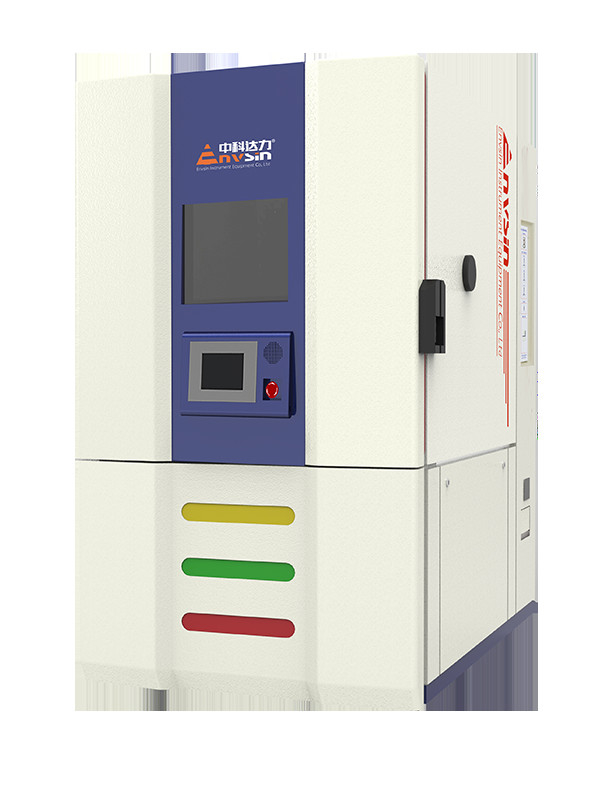

990L Rapid Temperature Change Test Chamber Water -Cooled Cooling system Test Chamber

The chamber can test samples of or not of thermal dispersion. For samples of thermal dispersion, the thermal dispersion power should be no more than the refrigerating power of the test chamber. The thermal conditioning process is dynamic, and the refrigerating power varies in different temperature. Therefore if the samples are of easy thermal dispersion, please refer to the load thermal capacity graph blow for a correct test performance.

Feature

Test Space	600L
Internal size	800×800×950mm (W×D×H)(W×D×H)
External size	1090mmx1960mmx1995mm
Power supply	AC380V±10%,50Hz±1,60A, 3/N/PE, earth resistance < 4Ω
Max. Power	60KW(normal 35KW)
Max. Currency	100A(normal 30A)
Cooling Method	Water -Cooled(Cooling system)

Specification

Temp Test	Temp.Range:-70℃～＋180℃	Note:1, Test with no load, meeting GB/T5170-2008, if no other special notice. 2, Ambient Temp 25℃, good ventilation condition: function well if 35℃≥RT＞25℃;Cool down rate and thermal load capacity will be affected by ambient low temperature.
	Temp Fluctuation:±0.1℃～±0.5℃
	Temperature Uniformity:±0.5℃～±1.0℃(empty)
	Temp Deviation :±0.1℃～±0.5℃
	Linear temperature change rate -40℃～＋125℃,11℃/min,with load of 5kg of PCBs
	Normal temperature change rate:15℃/min
Test Standards	1. GB/T 2423.1 Low Temp. Test	4. GJB 150.3 High Temp. Test
	2. GB/T 2423.2 High Temp. Test	5. GJB 150.4 Low Temp. Test
	3. GB/T2423.22 (Temp. Cycling Test)	6. IEC 60068-2 (Temp. Test)
Load Thermal Capacity Chart	Apply to standard temperature test, the thermal capacity for loading varies from different temperature value.

Structure

1. Refrigeration unit	2. Cable port
3. Control Pad Chamber door	4. Observation window
5. Main contorl panel	6. Working Lights
7. Door handle Wheels	8. Motor fan unit
9.Power distribution board	10.Extensional control pad

About Our Factory

Our solutions are widely used in military, aerospace, shipbuilding, industrial manufacturing, science and technology research and

development,quality management and other fields; We have 18 service centers in 16 countries around the world, providing you with

the most creative solutions and services immediately.

990L Rapid Change Temperature Test Chamber Water Cooled AC380V 3

Company Production Capacity

1. Product manufacturing process

Each of the company's products through strict process control, through its comprehensive verification after delivery

and customer rest assured use.

2. Production capacity

Automatic original imported sheet metal production line to effectively control product precision and production cycle.

3. Quality inspection

Strict process and finished product inspection standards ensure the reliability of the products and strictly implement ISO

traceability provisions.

Packgaing&Shipping

Well packed in strong wooden case suitable for all types of long distance shipment.
