High And Low Temperature Climatic Test Chamber 1000L OEM ODM

Minimum Order Quantity : 1 Payment Terms : T/T
Place of Origin: China Brand Name: Envsin
Certification: CE Model Number: ET

Detail Information

Name: Temperature Test Chamber Temp Range: -70~180
Cooling Methods: Air-cooled Power Supply: AC380V 50HZ
Temperature Constancy (℃): ±0.1- ±0.5 Customized Support: OEM, ODM
High Light:

Climatic Test Chamber 1000L


OEM Climatic Test Chamber


1000L temperature test chamber

Product Description

s / b High and Low temperature climatic test chamber


Description Of Climatic Test Chamber

Test Chambers is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.



Temperature and Test Chambers Overview

This test chamber is suitable for high temperature, low temperature and temperature cycling test of the whole units, parts and materials. it is used to test various types of materials for their tolerances of heat, cold. it is applied for quality inspection for all types of electronic products.
The Product Model we have ET4008,ET7008,ET4018,ET7018,ET4034,ET7034,ET4060,ET7060,ET4100,ET7100
The Test Volume Range : 80L,190L,335L,600L,1000L and other customized Volum
Model ET4008/ET7008 ET4100/ET7100
Test Space Volume(L) 80 1000
Temperature Range(℃) -40/180 -70/180 -40/180 -70/180
Temperature Constancy (℃) ±0.1- ±0.5
Temperature Homogeneity (℃) ±0.1- ±2.0
Heating Rate (℃/min) 3.3 3.3 3.2 3.5
Cooling Rate (℃/min) 3 2.7 2.5 2.3
Test Space Dimension(mm) 400W*400D*500H 1100W*950D*950H
External Dimension(MM) 650W*1000D*1750H 1390W*2155D*1995H
Max. Specimen Weight(kg) 5 100
Cooling Methods Air-Cooled


Options Standard Version
Independent sensors for specimen protection (NE60519-2.1993) 2 Silicon stoppers for entry ports
1 Entryport Φ100mm 2 Stainless steel shelves
Drier filter for compressing air 3 Power outlets for specimens
Nitrogen gas auxiliary device Left and right entry ports Φ50mm
Air-Cooled unit
Spare parts package
E-management and cyber-software
Video monitor system
APP for mobility management

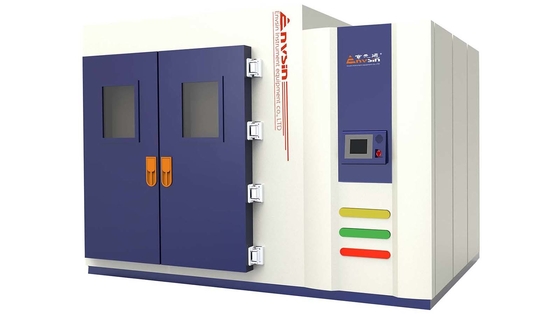

High And Low Temperature Climatic Test Chamber 1000L OEM ODM 0

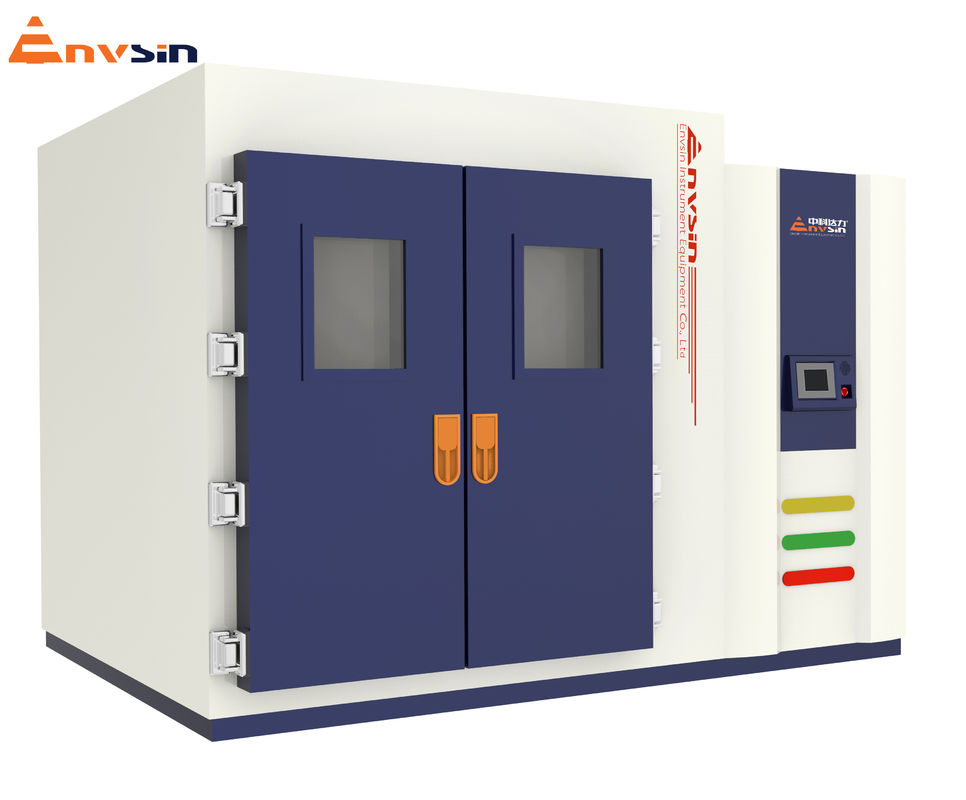

High And Low Temperature Climatic Test Chamber 1000L OEM ODM 1


1.structure Model:


Unitary.Test room is on the top, refrigerator is in the bottom; Power distribution control in the back; Main control panel in the front door, and the extended one is on the right-back side. Door opens from right to left. Air circulation channel and air conditioning system are at the back of test space:(centrifugal fan blade,air flow guiding device,heater,humidifier,Refrigeration heat exchanger,Temp and humidity sensing device




2.1 Exterior material: Both sides static coated cold rolled steel

2.2 Interior material: SUS304 Stainless steel

2.3 Insulation material: Rigid polyurethane foam insulation layer




3.1 Shelves load capacity:≤40Kg(averagely loaded)

3.2 Test case frame bearing capacity:≤20Kg(averagely loaded)

3.3 Test space total load weight(shelves and bottom)≤50kg


4.Chamber door:


4.1 Single door with hinges on the left;

4.2 Door size:580×750 mm(W×H);

4.3 Silicon rubber equipped and heating system inside for anti-condensation;


5.Observation window:


Size:280×400mm(W×H), coated heating anti frost hollow glass


6.Cable ports:


2 ports with Φ50 mm on left and right sides, with screw caps and Soft silicone plugs.


7. Headlamp:


In the observation window


8 . Shelves


2 shelves inside for samples; height adjustable


9. Drain Holes


Condensate water drain holes for condensate water outside


10.Spill Port


Located at the back of case for condensate water discharging


11.Mobile Castors


Strong adjustable wheels



1. Introduced Japanese and German refrigeration technology, Energy Saving 20%.

2. Easy operation, available for both fixed value test and programmable test.

3. Available for customized design and provide various options to meet different test requirements.

4. RS485 and RJ45 communications, available to computer remote control.

5. Fog-free observation window and interior light to view product under test.

6. Programmable
