IEC60068-2-14 Climatic Test Chamber Environmental Stress Screening

Minimum Order Quantity : 1 Payment Terms : T/T, Western Union
Place of Origin: China Brand Name: Envsin
Certification: CE Model Number: ETS

Detail Information

Product Name: Environmental Stress Screening Test Chambers Application: Electrical Appliances
Standard: IEC60068-2-14 Certification: CE
Hot Chamber Temp. Range (℃): +50/+200 Low Temperature Zone Range:: -75℃/+70℃
High Light:

IEC60068 Climatic Test Chamber


ODM Climatic Test Chamber


IEC60068 temperature humidity chamber

Product Description

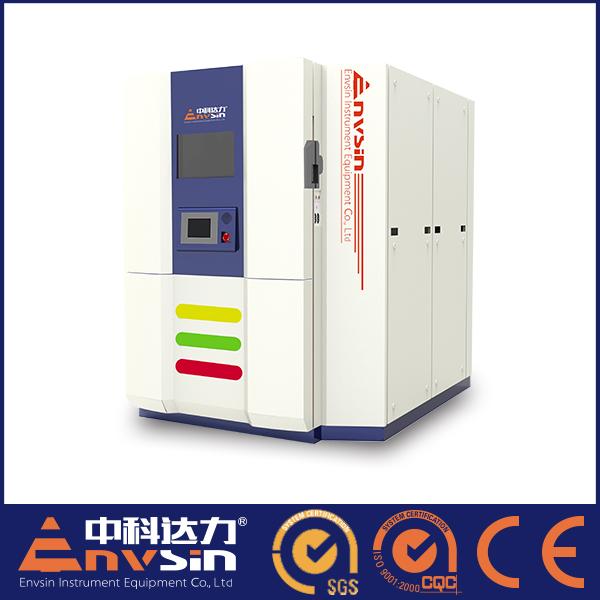

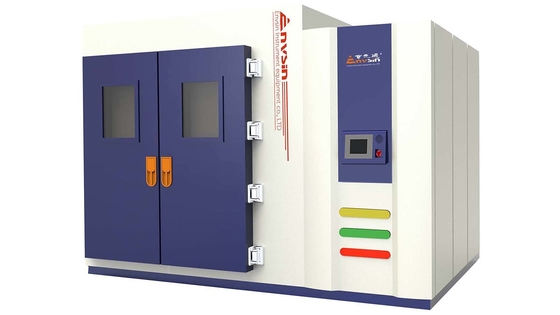

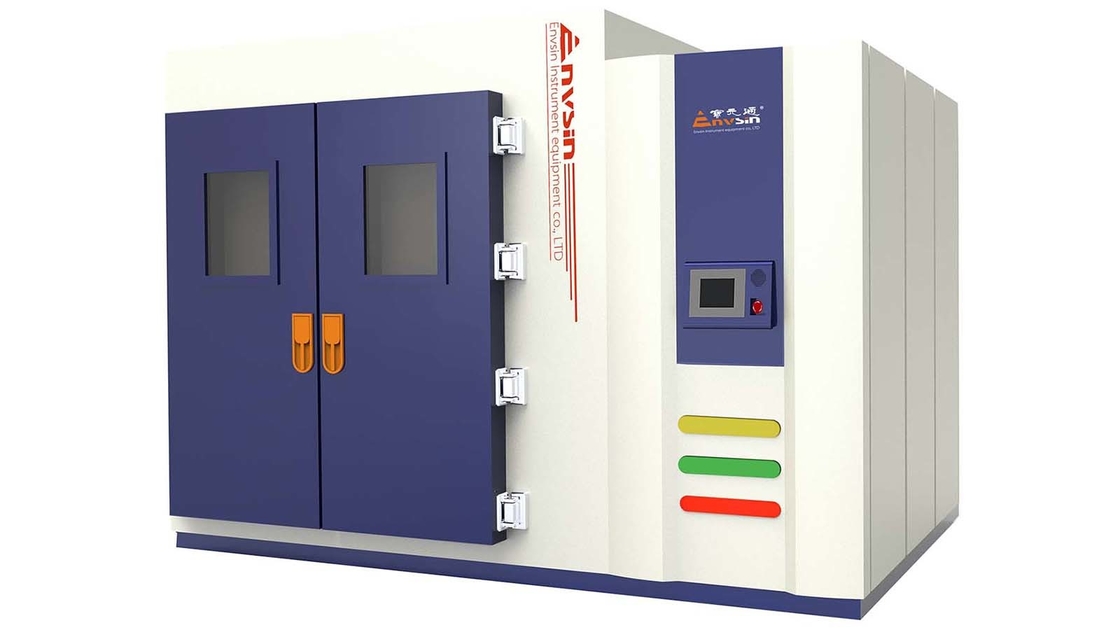

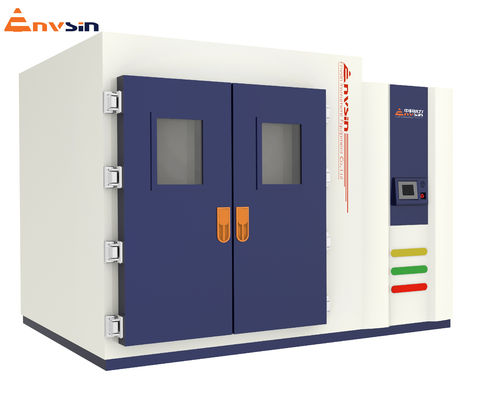

IEC60068-2-14 Climatic Test Chamber Environmental Stress Screening


This test chamber suitable for assessing the ability of the whole machine, components, parts and other parts to withstand sudden changes in temperature. It can understand the influences of the test sample at one or more times in succession under a certain speed change. The main parameters affecting the temperature change test are the high temperature and low temperature values of the temperature variation range, the temperature change rate, the retention time of the sample at high and low temperatures, and the number of cycles of the test.



Design with independent sensors to prevent specimens from damages caused by dewing, overheat, breezeless and smog Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate

 Optional network video monitoring and data synchronization

Automatic reminder of equipment maintenance plans and software of recording malfunction
Automatic reminder of equipment maintenance plans and software of recording malfunction Unique operation mode: make testing area's temperature back ro room temperature after tests are finished
Customer-friendly design: optional observation window with a reality visualization




Application Of Environmental Test Chambers

  1. Electronics
  2. electrical appliances
  3. Communications,instrumentation
  4. Vehicles
  5. plastic products
  6. Metal
  7. Food
  8. Chemical
  9. building materials
  10. Medical
  11. aerospace and other products.



IEC60068-2-14 Climatic Test Chamber Environmental Stress Screening 0



Model ETS5250S3 ETS5340S3
ETS6250S3 ETS6340S3
Test Space Volume (L) 252 335
Test Zone 3
Hot Chamber Temp. Range (℃) +50/+200
Room Temperature Chamber (℃) R.T
Cold Chamber Temp. Range (℃) -1.071428571 -1.071428571
Temp. Constancy (℃) ±0.3 - ±1.0 ±0.3 - ±1.0
Temp. Homogeneity (℃) ±1.0 - ±2.0 ±1.0 - ±2.0
Recovery Time (min) <15min <15min
ESS Temp. Range (℃) -0.44 -0.44
ESS Temp. Rate (℃) 3~15/15~3 (on specimen) 3~15/15~30 (on specimen)
Test Space Dimension (mm) 700W*600D*600H 800W*650D*650H
Exterior Dimension (mm) 1700W*2300D*2250H 1800W*2500D*2300H
Temp. Range two box (℃) -55/+150 -55/+150
Temp. Range three box (℃) -65/+150 -65/+150
Max. Specimens Weight (kg) 50 70
Cooling Methods Water-Cooled (Compliant with IEC 60068-3-5)
Power AC380V±10%,50HZ,3/N/PE
Compliant with International Standards:
IEC 60749-25 (JESD22-A104D) JESD22-A105-B
IEC 60068-2-14NB (JIS C0025NB) IPC-9701
IEC 61747-5 (EIAJED-2531A) SAE-J1211
